BD13910STU - onsemi

Description: Mininum Current Gain - hFE = 63 @ IC = 150 mA; BD135, BD137, BD139 are complementary with BD136, BD138, BD140; These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant

Download BD13910STU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

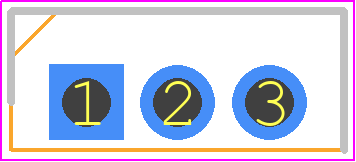

BD13910STU - onsemi PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - TO-126 3L
click to zoom
3D Models
BD13910STU - onsemi  - 3D model - Transistor Outline, Vertical - TO-126 3L
click to zoom

BD13910STU Details

  • Manufacturer Part Number:

    BD13910STU

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TO-126-3

  • Manufacturer Package Code:

    340AS

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Collector Current-Max (IC):

    1.5 A

  • Collector-Emitter Voltage-Max:

    80 V

  • Configuration:

    SINGLE

  • DC Current Gain-Min (hFE):

    63

  • JEDEC-95 Code:

    TO-126

  • JESD-30 Code:

    R-PSFM-T3

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    NPN

  • Power Dissipation-Max (Abs):

    13 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    250 MHz

BD13910STU Frequently Asked Questions (FAQs)

  • A good PCB layout for the BD13910STU involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure the BD13910STU operates within its SOA, monitor the device's junction temperature, output current, and input voltage. Use thermal design and heat sinking to keep the junction temperature below 150°C. Also, ensure the output current is within the specified range, and the input voltage is within the recommended operating range.
  • For thermal design, consider the device's power dissipation, thermal resistance, and junction temperature. Use a heat sink with a low thermal resistance, ensure good thermal interface material (TIM) contact, and provide adequate airflow. A thermal design calculator or simulation tool can help optimize the design.
  • To protect the BD13910STU, use overvoltage protection (OVP) and overcurrent protection (OCP) circuits. OVP can be achieved using a voltage regulator or a zener diode, while OCP can be implemented using a current sense resistor and a comparator. Additionally, consider using a fuse or a polyfuse for added protection.
  • To minimize EMI and ensure EMC compliance, use a shielded enclosure, keep the PCB layout compact, and use a common-mode choke or ferrite beads on the input and output lines. Also, consider using a snubber circuit to reduce electromagnetic interference (EMI).
