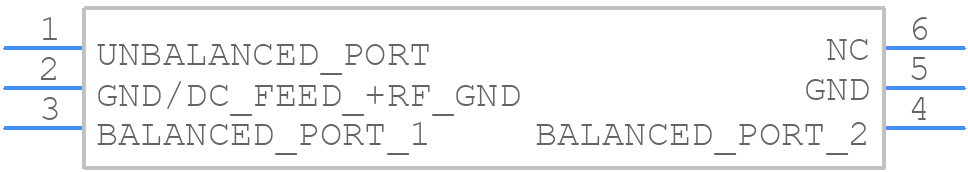

BD1631J50100AHF footprint, schematic symbol and 3D model by ANAREN

Symbol

PCB Footprints

3D Models

BD1631J50100AHF Details

The recommended PCB layout and land pattern can be found in the Anaren Microwave application note AN-112, which provides guidelines for optimal performance and thermal management.
Proper thermal management can be achieved by using a thermal pad or heat sink, and ensuring good airflow around the component. The thermal resistance of the component is 10°C/W, and the maximum junction temperature is 150°C.
The recommended soldering process is a reflow soldering process with a peak temperature of 260°C, and a dwell time of 30-60 seconds above 220°C. The component is RoHS compliant and lead-free.
Troubleshooting and debugging can be done using a combination of signal integrity analysis, power integrity analysis, and thermal imaging. Anaren Microwave also provides application notes and technical support for debugging and troubleshooting.
The typical lead time for the BD1631J50100AHF is 8-12 weeks, and availability can be checked with Anaren Microwave's sales team or authorized distributors.
