BD16950EFV-CE2 footprint, schematic symbol and 3D model by ROHM Semiconductor

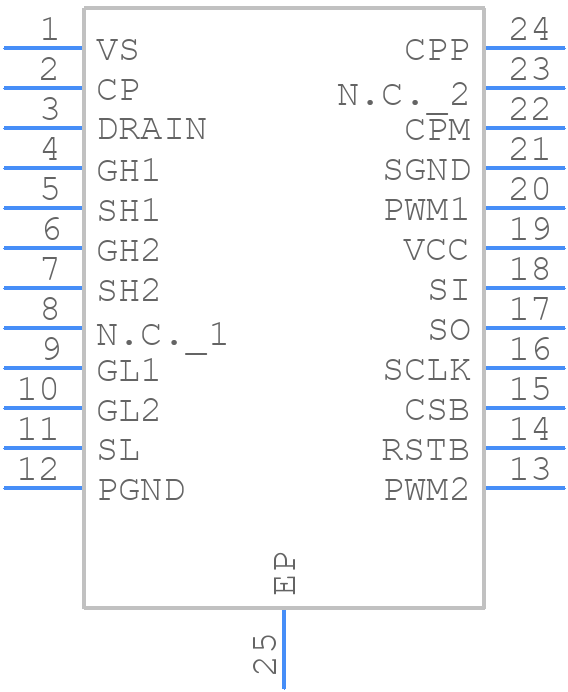

Symbol

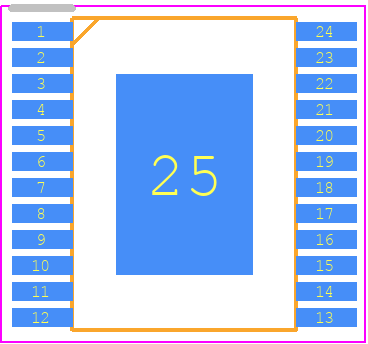

PCB Footprints

3D Models

BD16950EFV-CE2 Details

ROHM provides a recommended PCB layout in the application note AN12271, which includes guidelines for component placement, thermal vias, and routing to ensure optimal performance and thermal management.
The selection of input and output capacitors depends on the specific application requirements. ROHM recommends using low-ESR capacitors with a voltage rating of at least 2x the input voltage. The capacitance value should be chosen based on the required ripple voltage and output current.
The maximum ambient temperature for the BD16950EFV-CE2 is 85°C, but it can be derated to 70°C for high-reliability applications. It's essential to ensure proper thermal management to prevent overheating.
Yes, the BD16950EFV-CE2 is designed to withstand vibrations up to 10G. However, it's essential to ensure that the PCB is properly secured and the components are adequately soldered to prevent damage.
ROHM provides a troubleshooting guide in the application note AN12271, which covers common issues such as output voltage deviations, oscillations, and overheating. It's essential to follow the recommended debugging procedure to identify and resolve issues efficiently.

Community Provided

System Verified

Community Approved

Use the download button to access the BD16950EFV-CE2 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like BD169, or try a keyword search, such as MOSFET Drivers
