BD1722J50100AHF - ANAREN

Description: Signal Conditioning 1.7-2.GHz IL .9dB UnBal/Bal 50/100 ohm

Download BD1722J50100AHF Model

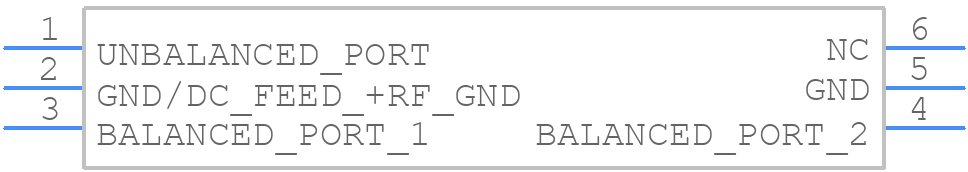

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BD1722J50100AHF - ANAREN PCB footprint - Other - Other - BD1722J50100AHF
click to zoom
3D Models
BD1722J50100AHF - ANAREN  - 3D model - Other - BD1722J50100AHF
click to zoom

BD1722J50100AHF Details

  • Manufacturer Part Number:

    BD1722J50100AHF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Manufacturer:

    Anaren Microwave

  • Cut-off Frequency-Max:

    2200 MHz

  • Cut-off Frequency-Min:

    1700 MHz

  • Height:

    0.68 mm

  • Insertion Loss:

    1.2 dB

  • Length:

    2.04 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    TAPE & REEL

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    1.29 mm

BD1722J50100AHF Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern can be found in the Anaren Microwave application note AN-112, which provides guidelines for optimal performance and thermal management.
  • The BD1722J50100AHF requires a bias voltage of 5V and a bias current of 100mA. Ensure that the bias circuitry is designed to provide a stable voltage and current to the device.
  • The BD1722J50100AHF can handle up to 10W of input power. Exceeding this limit may result in device damage or degradation.
  • Common issues can be troubleshooted by checking the bias circuitry, ensuring proper PCB layout and thermal management, and verifying the input and output impedance matching.
  • Yes, the BD1722J50100AHF has a maximum junction temperature of 150°C. Ensure that the device is properly heat-sinked and that the PCB design allows for adequate thermal dissipation.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

BD1722J50100AHF Overview

Use the download button to access the BD1722J50100AHF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BD172, or try a keyword search, such as RF Transformers
