BD18347AEFV-ME2 - ROHM Semiconductor

Description: LED Lighting Drivers AECQ

Download BD18347AEFV-ME2 Model

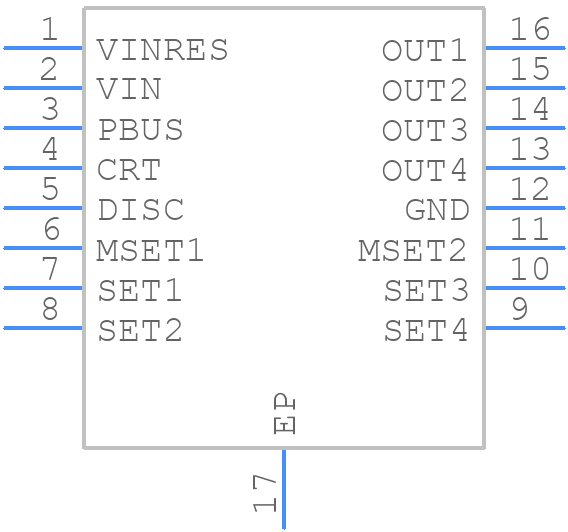

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BD18347AEFV-ME2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - HTSSOP-B16
click to zoom
3D Models
BD18347AEFV-ME2 - ROHM Semiconductor  - 3D model - Small Outline Packages - HTSSOP-B16
click to zoom

BD18347AEFV-ME2 Details

  • Manufacturer Part Number:

    BD18347AEFV-ME2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HTSSOP-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    8

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    5.5 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Width:

    4.4 mm

BD18347AEFV-ME2 Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the thermal pad of the IC to the ground plane. This helps to dissipate heat efficiently.
  • To ensure stable output voltage regulation, make sure to follow the recommended component values and PCB layout guidelines in the datasheet. Additionally, ensure that the input voltage is within the recommended range, and that the output capacitor is of sufficient value and type.
  • The maximum allowable ripple voltage on the input is typically 10% of the nominal input voltage. Exceeding this value may affect the stability of the output voltage regulation.
  • While it is possible to use a different inductor value, it is not recommended as it may affect the stability and efficiency of the converter. The recommended inductor value is chosen to ensure optimal performance and should be used whenever possible.
  • To troubleshoot issues with the converter not starting up, check the input voltage, output voltage, and enable pin voltage. Ensure that the input voltage is within the recommended range, and that the enable pin is properly biased. Also, check for any short circuits or open circuits on the PCB.
