BD18351EFV-ME2 - ROHM Semiconductor

Description: ROHM - BD18351EFV-ME2 - LED DRIVER, AEC-Q100, BOOST, HTSSOP-24

Download BD18351EFV-ME2 Model

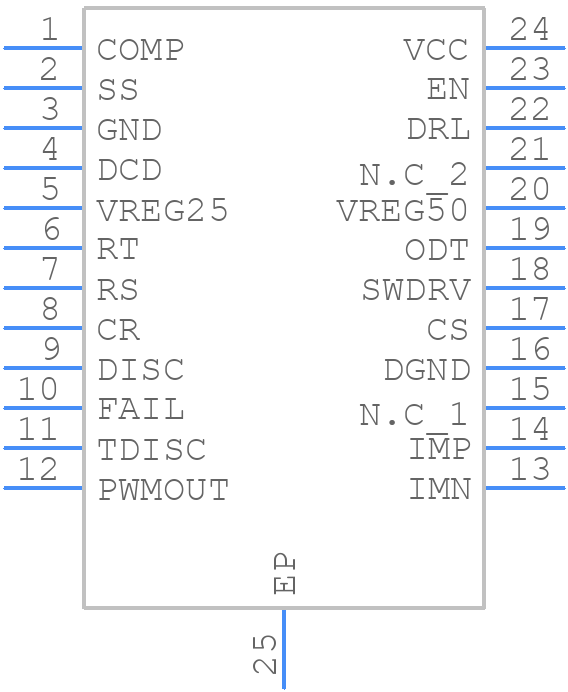

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

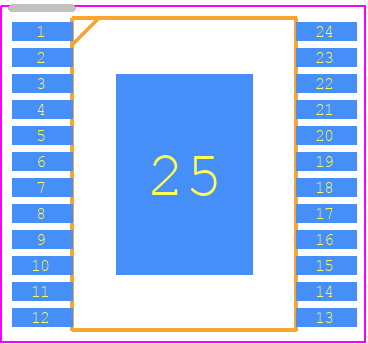

PCB Footprints
BD18351EFV-ME2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - HTSSOP
click to zoom
3D Models
BD18351EFV-ME2 - ROHM Semiconductor  - 3D model - Small Outline Packages - HTSSOP
click to zoom

BD18351EFV-ME2 Details

  • Manufacturer Part Number:

    BD18351EFV-ME2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HTSSOP-24

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    8

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PDSO-G24

  • Length:

    7.8 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    4

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSSOP

  • Package Equivalence Code:

    TSSOP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Max:

    65 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.6 mm

BD18351EFV-ME2 Frequently Asked Questions (FAQs)

  • A recommended PCB layout for optimal thermal performance would be to have a large copper area on the bottom layer connected to the thermal pad, and to use thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended.
  • To ensure stable operation with a high-capacitance output capacitor, it is recommended to add a series resistor (Rs) and a capacitor (Cc) in parallel with the output capacitor to form a damping circuit. This helps to prevent oscillation and ensure stable operation.
  • The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may cause damage to the device.
  • Yes, the BD18351EFV-ME2 is rated for operation up to 105°C. However, the device's power dissipation and junction temperature should be carefully considered to ensure reliable operation.
  • The output voltage ripple can be calculated using the following formula: ΔVout = (Iout x ESL) / (Cout x fsw), where ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency.
