BD1HD500FVM-CTR footprint, schematic symbol and 3D model by ROHM Semiconductor

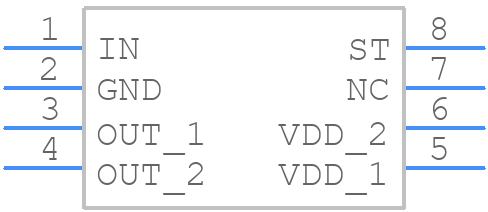

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for BD1HD500FVM-CTR
Part Number BD1HD500FVM-CTR
Manufacturer ROHM Semiconductor
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - MSOP-8
Released Date Sep 12, 2022
Last Modified Date Jul 30, 2025 4:43 AM UTC
Pinout / Pin List Click Here (Member Only)

BD1HD500FVM-CTR Details

Manufacturer Part Number:
BD1HD500FVM-CTR
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
MSOP-8
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
ROHM Semiconductor
YTEOL:
7
Built-in Protections:
TRANSIENT; OVER CURRENT; THERMAL; UNDER VOLTAGE
Driver Number of Bits:
1
Input Characteristics:
SCHMITT TRIGGER
Interface IC Type:
BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code:
R-PDSO-G8
Length:
2.9 mm
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-40 °C
Output Current Flow Direction:
SINK
Output Current-Max:
0.8 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
VSSOP
Package Equivalence Code:
TSSOP8,.16
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Screening Level:
AEC-Q100
Seated Height-Max:
0.9 mm
Supply Current-Max:
3 mA
Supply Voltage-Max:
18 V
Supply Voltage-Min:
4 V
Supply Voltage-Nom:
12 V
Surface Mount:
YES
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Turn-off Time:
25 µs
Turn-on Time:
25 µs
Width:
2.8 mm

BD1HD500FVM-CTR Frequently Asked Questions (FAQs)

A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the thermal pad of the IC to the ground plane. This helps to dissipate heat efficiently.
To ensure stable output voltage regulation, it's essential to follow the recommended capacitor selection and placement guidelines, and to ensure that the input voltage is within the specified range. Additionally, a low-ESR capacitor should be used for the output capacitor.
The maximum allowable ripple voltage on the input is typically 10% of the nominal input voltage. Exceeding this limit may affect the stability of the output voltage regulation.
The BD1HD500FVM-CTR is rated for operation up to 125°C. However, it's essential to consider the derating curves and thermal management to ensure reliable operation in high-temperature environments.
To protect the regulator from input voltage surges, it's recommended to use a TVS (Transient Voltage Suppressor) diode or a voltage clamp circuit at the input. This helps to absorb or clamp voltage spikes and prevent damage to the regulator.
