BD22641G-MTR - ROHM Semiconductor

Description: Power Switch ICs - Power Distribution LOW ON-RESISTANCE N-CHANNEL

Download BD22641G-MTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

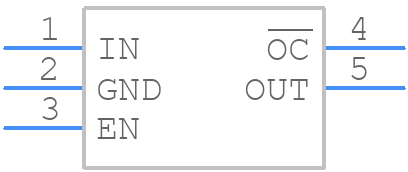

BD22641G-MTR - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
BD22641G-MTR - ROHM Semiconductor PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - SSOP5-1
click to zoom
3D Models
BD22641G-MTR - ROHM Semiconductor - 3D model - SOT23 (5-Pin) - SSOP5-1
click to zoom

BD22641G-MTR Details

  • Manufacturer Part Number:

    BD22641G-MTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-5

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7.3

  • Built-in Protections:

    OVER CURRENT; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    1

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G5

  • Length:

    2.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    0.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSOP5/6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.25 mm

  • Supply Current-Max:

    0.2 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    40 µs

  • Turn-on Time:

    10000 µs

  • Width:

    1.6 mm

BD22641G-MTR Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • To ensure stable operation, ROHM recommends using an output capacitor with a capacitance value less than 47uF, and an ESR (Equivalent Series Resistance) less than 10mΩ. Additionally, a 1uF ceramic capacitor in parallel with the output capacitor can help improve stability.
  • ROHM recommends using a 10uF to 22uF ceramic capacitor with an X5R or X7R dielectric as the input capacitor. This helps to filter out noise and ensure stable operation.
  • ROHM recommends using a voltage supervisor or a voltage detector to monitor the input voltage and reset the device if it falls outside the recommended operating range. Additionally, a TVS (Transient Voltage Suppressor) diode can be used to protect the device from voltage spikes.
  • The BD22641G-MTR is designed to operate at a switching frequency of 300kHz to 500kHz. Operating the device outside of this range may affect its performance and efficiency.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BD22641G-MTR Overview

Use the download button to access the BD22641G-MTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BD226, or try a keyword search, such as Peripheral Drivers
