BD235 - STMicroelectronics

Description: Transistor Bipolar NPN 60V 2A SOT32

Download BD235 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
BD235 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

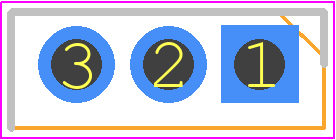

BD235 - STMicroelectronics PCB footprint - Other - Other - SOT-32 (TO-126)_1
click to zoom
3D Models
BD235 - STMicroelectronics - 3D model - Other - SOT-32 (TO-126)_1
click to zoom

BD235 Details

  • Manufacturer Part Number:

    BD235

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SIP

  • Package Description:

    ROHS COMPLIANT PACKAGE-3

  • Pin Count:

    3

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    2 A

  • Collector-Emitter Voltage-Max:

    60 V

  • Configuration:

    SINGLE

  • DC Current Gain-Min (hFE):

    25

  • JEDEC-95 Code:

    TO-126

  • JESD-30 Code:

    R-PSFM-T3

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    NPN

  • Power Dissipation Ambient-Max:

    25 W

  • Power Dissipation-Max (Abs):

    25 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    3 MHz

  • VCEsat-Max:

    0.6 V
