BD2425NnRF - ANAREN

Description: Signal Conditioning 2.4-2.525GHz 50 Ohm Nor. Semi nRF24L01 Ultra Low Profile 0404 Balun For nRF24L01 and nRF24L01+

Download BD2425NnRF Model

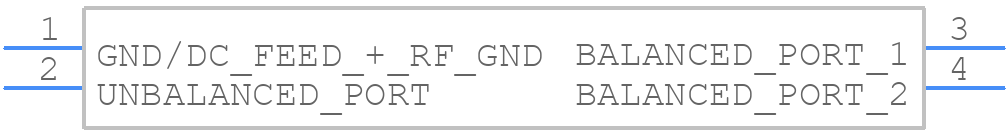

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BD2425NnRF - ANAREN PCB footprint - Other - Other - BD2425NnRF-2
click to zoom
3D Models
BD2425NnRF - ANAREN  - 3D model - Other - BD2425NnRF-2
click to zoom

BD2425NnRF Details

  • Manufacturer Part Number:

    BD2425NNRF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Manufacturer:

    Anaren Microwave

  • Additional Feature:

    HEIGHT DIMENSION INCLUDES TERMINALS ALSO

  • Cut-off Frequency-Max:

    2525 MHz

  • Cut-off Frequency-Min:

    2400 MHz

  • Height:

    0.57 mm

  • Insertion Loss:

    1.25 dB

  • JESD-609 Code:

    e4

  • Length:

    1.05 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    TAPE & REEL

  • Surface Mount:

    YES

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    1.05 mm

BD2425NnRF Frequently Asked Questions (FAQs)

  • Anaren provides a recommended PCB layout and land pattern in their application note AN-1121, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • Anaren provides a set of impedance matching networks in their application note AN-1121, which can be used as a starting point for impedance matching. Additionally, Anaren's tools, such as the Anaren Impedance Matching Tool, can be used to design and optimize the matching network.
  • The maximum power handling capability of the BD2425NNRF is not explicitly stated in the datasheet. However, according to Anaren's application note AN-1121, the device can handle up to 20 dBm of input power. It's essential to derate the power handling capability based on the operating frequency, temperature, and other environmental factors.
  • To ensure reliability and longevity, it's essential to follow proper handling, storage, and assembly procedures. Anaren provides guidelines for handling and assembly in their application note AN-1121. Additionally, operating the device within its recommended specifications, providing adequate heat sinking, and using proper PCB materials can help ensure reliability and longevity.
  • Yes, the BD2425NNRF has a maximum junction temperature of 150°C. It's essential to provide adequate heat sinking to ensure the device operates within its recommended temperature range. Anaren provides thermal management guidelines in their application note AN-1121, including recommendations for thermal pads, heat sinks, and thermal interfaces.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

BD2425NnRF Overview

Use the download button to access the BD2425NnRF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BD242, or try a keyword search, such as RF Transformers
