A recommended PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To ensure stable output voltage regulation, it is recommended to use a high-quality output capacitor with low ESR, and to follow the recommended PCB layout guidelines. Additionally, the input voltage should be well-regulated and decoupled to prevent noise and ripple from affecting the output voltage.
The maximum allowable power dissipation for the BD33GC0MEFJ-ME2 is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 1.5W at an ambient temperature of 25°C. However, this value can be derated based on the actual operating conditions.
The BD33GC0MEFJ-ME2 is rated for operation up to 125°C, but the maximum junction temperature should not exceed 150°C. It is recommended to derate the power dissipation and to ensure good thermal design to prevent overheating in high-temperature environments.
To protect the device from overvoltage and undervoltage conditions, it is recommended to use a voltage supervisor or a reset IC to monitor the input voltage and to reset the device if the voltage goes out of range. Additionally, a TVS diode can be used to protect the device from voltage spikes and surges.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BD33GC0MEFJ-ME2 Overview

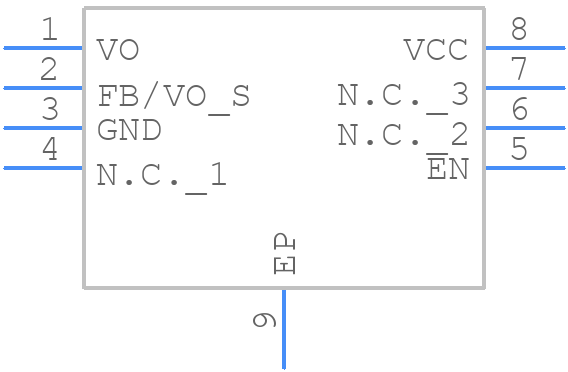

Use the download button to access the BD33GC0MEFJ-ME2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BD33G,
or try a keyword search, such as Linear Regulator ICs
