BD33IA5MEFJ-ME2 - ROHM Semiconductor

Description: 0.5A Variable LDO Regulator HTSOP-J8

Download BD33IA5MEFJ-ME2 Model

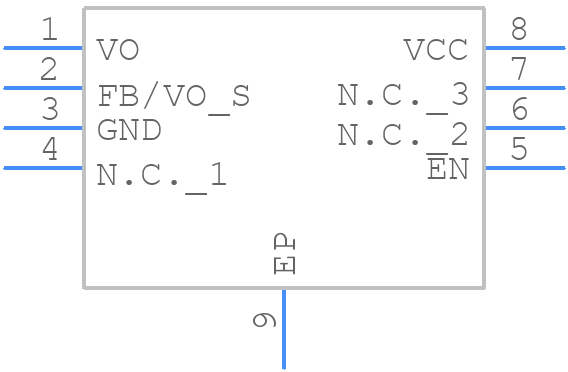

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BD33IA5MEFJ-ME2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - HTSOP
click to zoom
3D Models
BD33IA5MEFJ-ME2 - ROHM Semiconductor  - 3D model - Small Outline Packages - HTSOP
click to zoom

BD33IA5MEFJ-ME2 Details

  • Manufacturer Part Number:

    BD33IA5MEFJ-ME2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    3

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.9 V

  • Dropout Voltage1-Nom:

    0.4 V

  • Input Voltage Absolute-Max:

    7 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    3.9 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Line Regulation-Max:

    0.05%

  • Load Regulation-Max:

    0.075%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    3.399 V

  • Output Voltage1-Min:

    3.201 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSOP

  • Package Equivalence Code:

    TSOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Voltage Tolerance-Max:

    3%

  • Width:

    3.9 mm

BD33IA5MEFJ-ME2 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the BD33IA5MEFJ-ME2 is 2.5V to 5.5V.
  • To ensure the stability of the output voltage, it is recommended to use a capacitor with a value of 1uF or more between the VOUT and GND pins, and to keep the input voltage stable.
  • The maximum output current that the BD33IA5MEFJ-ME2 can provide is 500mA.
  • To protect the BD33IA5MEFJ-ME2 from overheating, it is recommended to provide adequate heat dissipation, such as using a heat sink or a thermal pad, and to keep the ambient temperature below 85°C.
  • The BD33IA5MEFJ-ME2 is rated for operation up to 125°C, but it is recommended to derate the output current and voltage at high temperatures to ensure reliable operation.
