BD3532F-E2 footprint, schematic symbol and 3D model by ROHM Semiconductor

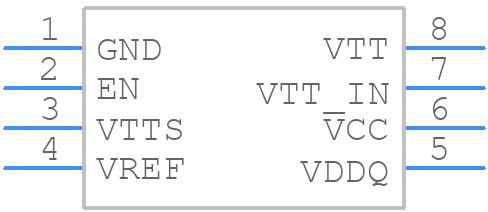

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for BD3532F-E2
Part Number BD3532F-E2
Manufacturer ROHM Semiconductor
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SOP8 HEIGHT 1.6
Released Date Feb 16, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

BD3532F-E2 Details

Manufacturer Part Number:
BD3532F-E2
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
ROHM Semiconductor
YTEOL:
0
JESD-30 Code:
R-PDSO-G8
Length:
5 mm
Line Regulation-Max:
0.04%
Load Regulation-Max:
0.04%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
8
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Packing Method:
EMBOSSED TAPE & REEL
Regulator Type:
DDR TERMINATION REGULATOR
Seated Height-Max:
1.71 mm
Surface Mount:
YES
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Width:
4.4 mm

BD3532F-E2 Frequently Asked Questions (FAQs)

ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
ROHM recommends using an output capacitor with an ESR of 10Ω or less to ensure stable operation. Additionally, a 1μF or larger ceramic capacitor in parallel with the output capacitor can help to reduce oscillation.
The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may damage the device.
The BD3532F-E2 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. ROHM recommends derating the output current and voltage according to the temperature derating curve in the datasheet.
ROHM recommends checking the PCB layout, output capacitor selection, and input voltage stability. Ensure that the output capacitor is properly decoupled and that the input voltage is within the recommended range. Additionally, check for any noise or interference on the input or output lines.

Trust Checks

Community Provided

System Verified

Community Approved

BD3532F-E2 Overview

Use the download button to access the BD3532F-E2 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like BD353, or try a keyword search, such as Other Regulators
