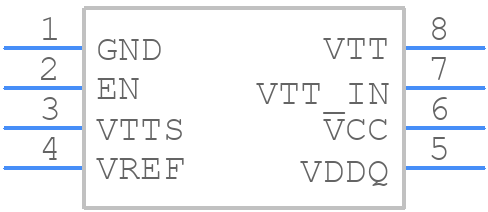

BD3533F-E2 - ROHM Semiconductor

BD3533F-E2 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
• How do I ensure stable operation with a high-ESR output capacitor?
  ROHM recommends using an output capacitor with an ESR of 10mΩ or less to ensure stable operation. Additionally, a 1μF or larger ceramic capacitor in parallel with the output capacitor can help to reduce oscillation.
• What is the maximum allowed voltage on the EN pin?
  The maximum allowed voltage on the EN pin is 6V, exceeding which may cause damage to the device. It is recommended to use a voltage divider or a clamp circuit to limit the voltage to 6V or less.
• Can I use the BD3533F-E2 in a high-temperature environment?
  The BD3533F-E2 is rated for operation up to 125°C, but derating is required for temperatures above 85°C. Consult the datasheet for derating curves and ensure proper thermal design to prevent overheating.
• How do I troubleshoot oscillation or instability issues with the BD3533F-E2?
  Check the PCB layout for proper thermal design, ensure the output capacitor is properly selected, and verify that the input voltage is within the recommended range. Also, check for any noise or interference on the input or output lines.
