BD3539FVM-TR - ROHM Semiconductor

Description: Power Management Specialized - PMIC MEMORY IC REG

Download BD3539FVM-TR Model
Schematic

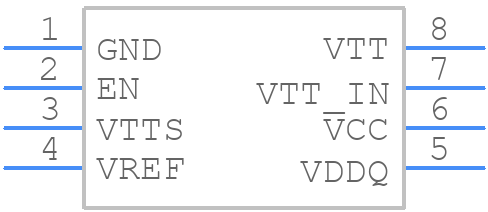

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BD3539FVM-TR - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - MSOP8_2023
click to zoom
3D Models
BD3539FVM-TR - ROHM Semiconductor  - 3D model - Small Outline Packages - MSOP8_2023
click to zoom

BD3539FVM-TR Details

  • Manufacturer Part Number:

    BD3539FVM-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e2

  • Length:

    2.9 mm

  • Load Regulation-Max:

    0.03%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -30 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSSOP8,.16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, EMBOSSED

  • Regulator Type:

    DDR TERMINATION REGULATOR

  • Seated Height-Max:

    0.9 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Copper (Sn/Cu)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    2.8 mm

BD3539FVM-TR Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the BD3539FVM-TR is 2.5V to 5.5V.
  • To ensure the stability of the output voltage, it is recommended to use a ceramic capacitor with a capacitance of 1uF or more between the VOUT and GND pins, and to keep the output capacitor close to the VOUT pin.
  • The maximum output current that the BD3539FVM-TR can provide is 500mA.
  • To handle thermal considerations, it is recommended to provide a heat sink or a thermal pad on the PCB, and to ensure good airflow around the device. The maximum junction temperature should not exceed 125°C.
  • The EN (Enable) pin is used to turn the regulator on or off. When the EN pin is high, the regulator is enabled, and when it is low, the regulator is disabled.
