A recommended PCB layout for optimal thermal performance would be to have a large copper area on the bottom layer connected to the thermal pad, and to use thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended.
To ensure proper power-up and configuration, follow the recommended power-up sequence, ensure the input voltage is within the specified range, and configure the device according to the datasheet's recommended settings.
Handle the device by the body, avoid touching the pins, and use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage. Store the device in an anti-static bag or container when not in use.
Use a logic analyzer or oscilloscope to monitor the device's signals, check the power supply and input voltage, and verify the device is properly configured according to the datasheet. Consult the datasheet's troubleshooting section or contact ROHM Semiconductor's support team for further assistance.
Yes, for high-reliability or safety-critical applications, ensure the device is used within its specified operating conditions, follow proper derating guidelines, and consider implementing redundant or fail-safe designs. Consult ROHM Semiconductor's application notes and reliability reports for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BD41030FJ-CGE2 Overview

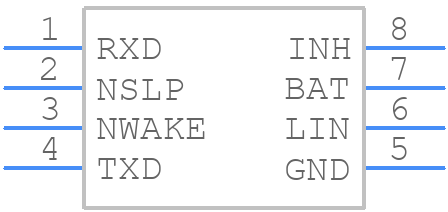

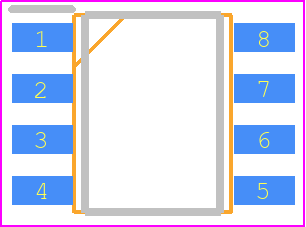

Use the download button to access the BD41030FJ-CGE2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BD410,
or try a keyword search, such as Network Interfaces
