BD41041FJ-CE2 - ROHM Semiconductor

Description: ROHM Semiconductor CAN Transceiver for Automotive

Download BD41041FJ-CE2 Model

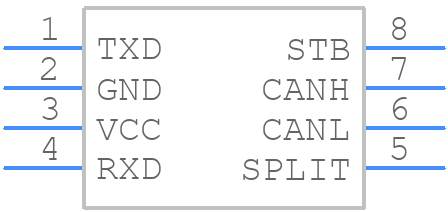

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BD41041FJ-CE2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - SOP-J8
click to zoom
3D Models
BD41041FJ-CE2 - ROHM Semiconductor  - 3D model - Small Outline Packages - SOP-J8
click to zoom

BD41041FJ-CE2 Details

  • Manufacturer Part Number:

    BD41041FJ-CE2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Philippines

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2018-03-26

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    6

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.65 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

BD41041FJ-CE2 Frequently Asked Questions (FAQs)

  • A recommended PCB layout for optimal thermal performance would be to have a large copper area on the bottom layer connected to the thermal pad, and to use thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended.
  • To ensure stable operation with a high-capacitance output capacitor, it is recommended to add a series resistor (Rs) and a capacitor (Cc) in parallel with the output capacitor to form a damping circuit. This helps to prevent oscillation and ensure stable operation.
  • The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may cause damage to the device.
  • The output voltage ripple can be calculated using the following formula: ΔVout = (Iout * ESL) / (Cout * fsw), where ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency.
  • The recommended input capacitor value is 10uF to 22uF, and the recommended type is a ceramic capacitor with an X7R or X5R dielectric. This helps to filter out noise and ensure stable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BD41041FJ-CE2 Overview

Use the download button to access the BD41041FJ-CE2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BD410, or try a keyword search, such as Network Interfaces
