BD42500G-CTR - ROHM Semiconductor

Description: ROHM BD42500G-CTR Linear Voltage Regulator, 50mA, ±15mV 5-Pin, SSOP

Download BD42500G-CTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

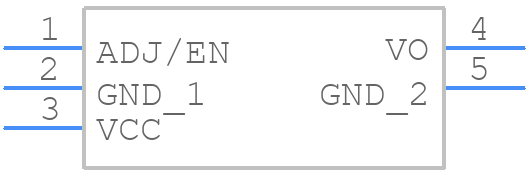

Symbol
BD42500G-CTR - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
BD42500G-CTR - ROHM Semiconductor PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - BD42500G-CTR
click to zoom
3D Models
BD42500G-CTR - ROHM Semiconductor - 3D model - SOT23 (5-Pin) - BD42500G-CTR
click to zoom

BD42500G-CTR Details

  • Manufacturer Part Number:

    BD42500G-CTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    3

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G5

  • Length:

    2.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Seated Height-Max:

    1.25 mm

  • Supply Voltage-Max (Vsup):

    42 V

  • Supply Voltage-Min (Vsup):

    5.3 V

  • Supply Voltage-Nom (Vsup):

    13.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Width:

    1.6 mm

BD42500G-CTR Frequently Asked Questions (FAQs)

  • ROHM recommends a 2-layer or 4-layer PCB with a thermal relief pattern on the bottom layer to improve heat dissipation. A minimum of 1 oz copper thickness is recommended for the PCB.
  • To ensure stable operation with a high-capacitance output capacitor, ROHM recommends adding a 1-2 ohm resistor in series with the capacitor to dampen oscillations.
  • The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may damage the device.
  • While the BD42500G-CTR is rated for operation up to 105°C, ROHM recommends derating the output current and voltage to ensure reliable operation in high-temperature environments.
  • ROHM recommends checking the PCB layout, output capacitor selection, and input voltage stability to troubleshoot oscillations or instability issues. A 10uF-22uF output capacitor with a 1-2 ohm series resistor can help stabilize the output.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BD42500G-CTR Overview

Use the download button to access the BD42500G-CTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BD425, or try a keyword search, such as Other Signal Circuits
