BD42530EFJ-CE2 - ROHM Semiconductor

Description: Supervisory Circuits 5.6-42V HTSOP-J8 16A LDO Regulator

Download BD42530EFJ-CE2 Model
Schematic

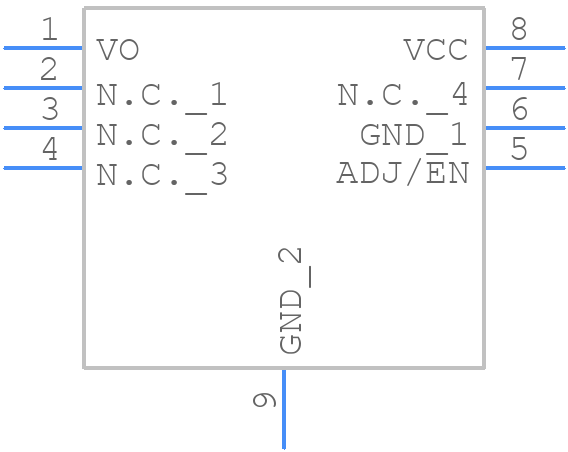

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

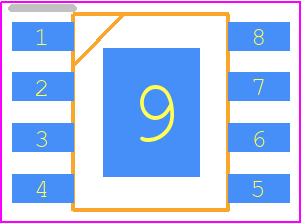

BD42530EFJ-CE2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - BM2P052F-GE2
click to zoom
3D Models
BD42530EFJ-CE2 - ROHM Semiconductor  - 3D model - Small Outline Packages - BM2P052F-GE2
click to zoom

BD42530EFJ-CE2 Details

  • Manufacturer Part Number:

    BD42530EFJ-CE2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    3

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    42 V

  • Supply Voltage-Min (Vsup):

    5.6 V

  • Supply Voltage-Nom (Vsup):

    13.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

BD42530EFJ-CE2 Frequently Asked Questions (FAQs)

  • ROHM recommends a 2-layer or 4-layer PCB with a thermal relief pattern on the bottom layer to improve heat dissipation. A minimum of 1 oz copper thickness is recommended.
  • To ensure stable operation, ROHM recommends using a capacitor with a low ESR (Equivalent Series Resistance) and a capacitance value between 10uF to 100uF. Additionally, a 1uF to 10uF ceramic capacitor in parallel with the main capacitor can help reduce noise and improve stability.
  • ROHM recommends using a 1uF to 10uF ceramic capacitor with an X5R or X7R dielectric as the input capacitor. This helps to filter out noise and improve regulator stability.
  • ROHM recommends using a TVS (Transient Voltage Suppressor) diode or a varistor in parallel with the input capacitor to protect the regulator from input voltage surges and spikes.
  • The maximum allowed voltage drop from the input to the output is 2.5V. Exceeding this voltage drop may affect the regulator's performance and stability.
