A recommended PCB layout for optimal thermal performance would be to use a large copper area on the bottom layer as a heat sink, connected to the thermal pad of the IC. This helps to dissipate heat efficiently.
To ensure stable operation with a high-ESR output capacitor, it is recommended to add a small ceramic capacitor (e.g., 1uF) in parallel with the output capacitor to improve the overall ESR and reduce oscillation risk.
The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may damage the IC.
While the BD4271HFP-CTR is rated for operation up to 105°C, it's essential to consider the derating of the IC's performance and reliability at high temperatures. Consult the datasheet and ROHM's application notes for guidance on high-temperature operation.
The output voltage ripple can be calculated using the formula: ΔVout = (Iout * ESL) / (Cout * fsw), where ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BD4271HFP-CTR Overview

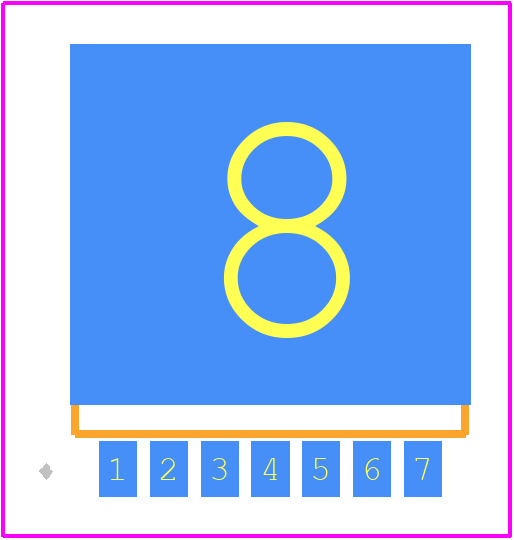

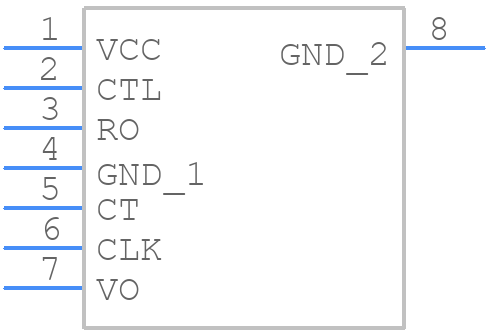

Use the download button to access the BD4271HFP-CTR schematic symbol, PCB footprint, and 3D model.
