BD433M2EFJ-CE2 - ROHM Semiconductor

Description: ROHM BD433M2EFJ-CE2, LDO Regulator, 200mA, 3.3 V, ±2% 8-Pin, HTSOP

Download BD433M2EFJ-CE2 Model
Schematic

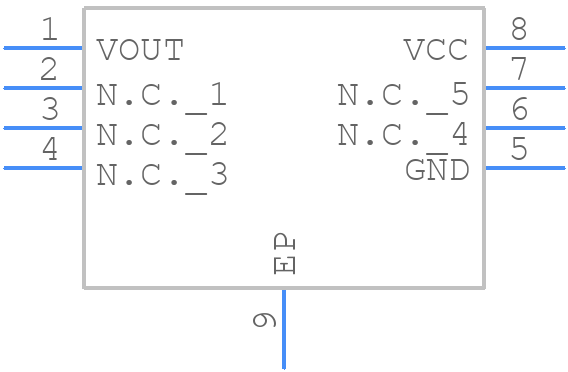

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BD433M2EFJ-CE2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - HTSOP-J8_1
click to zoom
3D Models
BD433M2EFJ-CE2 - ROHM Semiconductor  - 3D model - Small Outline Packages - HTSOP-J8_1
click to zoom

BD433M2EFJ-CE2 Details

  • Manufacturer Part Number:

    BD433M2EFJ-CE2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    3

  • Dropout Voltage1-Max:

    0.45 V

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    4.3 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.2 A

  • Output Voltage1-Max:

    3.37 V

  • Output Voltage1-Min:

    3.16 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    4.2%

  • Width:

    3.9 mm

BD433M2EFJ-CE2 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a thermal relief pattern and a solid ground plane is recommended. Ensure a minimum of 1mm clearance around the device for airflow.
  • Use a capacitor with an ESR of 10Ω or less, and add a 1-2nF ceramic capacitor in parallel to reduce the overall ESR. Ensure the capacitor is placed close to the device.
  • The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may damage the device.
  • The device is rated for operation up to 105°C. However, derating is required above 85°C. Consult the datasheet for thermal derating curves.
  • Use a shielded inductor, keep the device and output capacitor close together, and ensure a solid ground plane. Add a 10nF-100nF capacitor between the output and ground to reduce EMI.
