BD6516F-E2 - ROHM Semiconductor

Description: 2ch High Side Switch ICs for USB Devices and Memory Cards

Download BD6516F-E2 Model

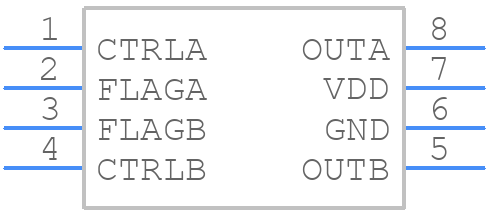

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BD6516F-E2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - SOP8 (1)
click to zoom
3D Models
BD6516F-E2 - ROHM Semiconductor  - 3D model - Small Outline Packages - SOP8 (1)
click to zoom

BD6516F-E2 Details

  • Manufacturer Part Number:

    BD6516F-E2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Additional Feature:

    CONTROL LOGIC: ACTIVE HIGH

  • Built-in Protections:

    OVER CURRENT; OVER VOLTAGE; THERMAL

  • Driver Number of Bits:

    2

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    5 mm

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    1.65 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.5 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    20 µs

  • Turn-on Time:

    6000 µs

  • Width:

    4.4 mm

BD6516F-E2 Frequently Asked Questions (FAQs)

  • A good PCB layout for the BD6516F-E2 should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper coverage around the device. Avoid routing high-current traces near the device to minimize thermal resistance.
  • To ensure stable output voltage regulation, ensure that the input voltage is within the recommended range, and the output capacitor is of sufficient value and type (e.g., ceramic or tantalum). Also, ensure that the feedback resistors are of high precision and low tolerance.
  • A ceramic capacitor with a value of 4.7uF to 10uF is recommended for the input capacitor. This helps to filter out noise and ripple from the input voltage.
  • Implement overcurrent protection (OCP) and overvoltage protection (OVP) circuits to prevent damage from excessive current or voltage. Also, ensure good thermal design and heat sinking to prevent overheating.
  • A ceramic capacitor with a value of 10uF to 22uF is recommended for the output capacitor. This helps to filter out noise and ripple from the output voltage.
