A good PCB layout for the BD6517F-E2 should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper pour coverage around the device. Avoid routing high-current traces under the device, and keep the thermal pad connected to a solid ground plane.
To ensure stable output voltage regulation, make sure to decouple the input and output with suitable capacitors (e.g., 10uF ceramic capacitors). Also, ensure the output capacitor is properly sized for the desired output voltage and load current. Additionally, consider adding a soft-start circuit to prevent inrush currents during startup.
For the BD6517F-E2, a low-ESR ceramic capacitor (e.g., X5R or X7R) with a value of 4.7uF to 10uF is recommended. This helps to filter out high-frequency noise and ensures stable operation.
Implement overcurrent protection (OCP) and overvoltage protection (OVP) circuits to prevent damage from excessive current or voltage. Also, consider adding thermal monitoring and shutdown circuits to prevent overheating. ROHM Semiconductor provides guidelines for OCP and OVP in their application notes.
The BD6517F-E2 is rated for operation from -40°C to 105°C (ambient temperature). However, for optimal performance and reliability, it's recommended to operate the device within a temperature range of 0°C to 85°C.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BD6517F-E2 Overview

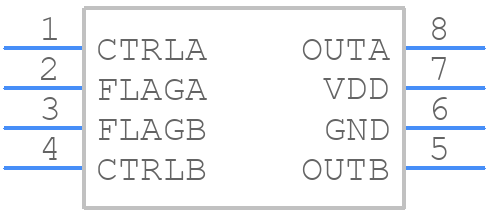

Use the download button to access the BD6517F-E2 schematic symbol, PCB footprint, and 3D model.
