BD733L2EFJ-CE2 - ROHM Semiconductor

Description: LDO Regulator 200mA 3.3V Low IQ HTSOP-J8

Download BD733L2EFJ-CE2 Model

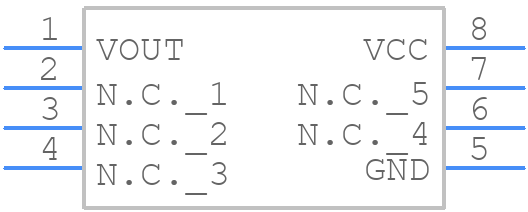

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BD733L2EFJ-CE2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - BD733L2EFJ-CE2
click to zoom
3D Models
BD733L2EFJ-CE2 - ROHM Semiconductor  - 3D model - Small Outline Packages - BD733L2EFJ-CE2
click to zoom

BD733L2EFJ-CE2 Details

  • Manufacturer Part Number:

    BD733L2EFJ-CE2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Direct Group:

    VG0019661VO9

  • Similar Group:

    VG001002123310051427

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    3

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    1 V

  • Dropout Voltage1-Nom:

    0.6 V

  • Input Voltage Absolute-Max:

    50 V

  • Input Voltage-Max:

    45 V

  • Input Voltage-Min:

    4.37 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Load Regulation-Max(%):

    0.02%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.2 A

  • Output Voltage1-Max:

    3.37 V

  • Output Voltage1-Min:

    3.23 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSOP

  • Package Equivalence Code:

    TSOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Packing Method:

    TR

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    2.12%

  • Width:

    3.9 mm

BD733L2EFJ-CE2 Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • To ensure stable operation, ROHM recommends using an output capacitor with a capacitance value less than 47uF. Additionally, a 1uF ceramic capacitor in parallel with a 10uF electrolytic capacitor is a good combination.
  • The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may damage the device.
  • The BD733L2EFJ-CE2 is rated for operation up to 105°C. However, derating is required for temperatures above 85°C. Consult the datasheet for specific derating guidelines.
  • Power dissipation can be calculated using the formula: Pd = (Vin * Iin) + (Vout * Iout). Consult the datasheet for specific values and equations.
