ROHM provides a recommended PCB layout in the application note AN1191, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
The input capacitor selection depends on the input voltage, output current, and ripple current requirements. ROHM recommends using a low-ESR capacitor with a minimum capacitance of 10uF and a voltage rating of at least 1.5 times the input voltage. The application note AN1191 provides more detailed guidance on input capacitor selection.
The maximum output current derating for high ambient temperatures is not explicitly stated in the datasheet. However, according to ROHM's application note AN1191, the output current should be derated by 50% for every 10°C increase in ambient temperature above 50°C to ensure reliable operation.
Yes, the BD7683FJ-LBE2 is AEC-Q100 qualified and suitable for automotive and high-reliability applications. However, it's essential to follow ROHM's guidelines for PCB design, component selection, and testing to ensure the regulator meets the required reliability and quality standards.
Oscillations or instability issues can be caused by inadequate input decoupling, incorrect output capacitor selection, or poor PCB layout. ROHM recommends following the guidelines in the application note AN1191 for input and output capacitor selection, and ensuring proper PCB layout and decoupling to prevent oscillations. If issues persist, consult ROHM's technical support for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BD7683FJ-LBE2 Overview

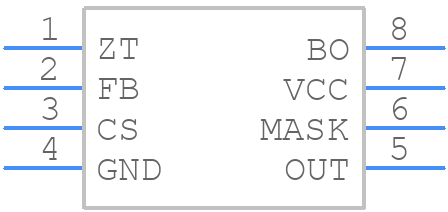

Use the download button to access the BD7683FJ-LBE2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BD768,
or try a keyword search, such as Switching Regulator or Controllers
