A recommended PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To ensure stable output voltage regulation, it's essential to follow the recommended component values and PCB layout guidelines in the datasheet. Additionally, make sure to decouple the input and output with suitable capacitors, and use a low-ESR output capacitor to minimize voltage ripple.
The maximum allowable ripple current for the input capacitor depends on the specific capacitor used. As a general guideline, the ripple current should be limited to 20-30% of the capacitor's rated ripple current to ensure reliable operation.
While it's technically possible to use a different inductor value, it's not recommended. The recommended inductor value is carefully selected to ensure optimal performance and stability. Using a different value may affect the regulator's performance, stability, and efficiency.
To protect the device from overcurrent and overheating, it's essential to implement overcurrent protection (OCP) and thermal protection. The BD7684FJ-LBE2 has built-in OCP, but you may need to add external components to implement thermal protection, such as a thermal sensor and a shutdown circuit.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BD7684FJ-LBE2 Overview

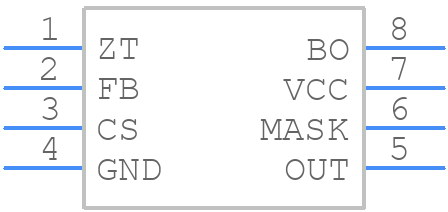

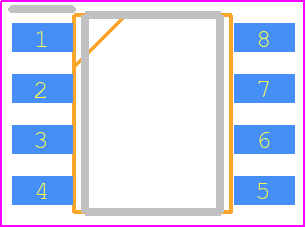

Use the download button to access the BD7684FJ-LBE2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BD768,
or try a keyword search, such as Switching Regulator or Controllers
