BD7931F-E2 - ROHM Semiconductor

Description: Wide dynamic range loading driver with MOS output, RON = 1.0Ω (Top + Bottom) With loading driver voltage setting terminal Built-in Thermal Shutdown Circuit (TSD)

Download BD7931F-E2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

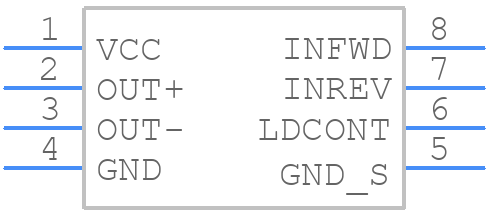

BD7931F-E2 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
BD7931F-E2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - SOP8..
click to zoom
3D Models
BD7931F-E2 - ROHM Semiconductor - 3D model - Small Outline Packages - SOP8..
click to zoom

BD7931F-E2 Details

  • Manufacturer Part Number:

    BD7931F-E2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Drive Type:

    OPTICAL

  • Interface IC Type:

    CD MOTOR DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    5 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    14 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

BD7931F-E2 Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the IC to improve heat dissipation. A 2-layer or 4-layer PCB with a thermal relief pattern is also recommended to reduce thermal resistance.
  • To ensure stable output voltage regulation, it is recommended to use a 10uF or larger output capacitor with a low ESR (Equivalent Series Resistance) and to minimize the distance between the output capacitor and the IC.
  • The maximum input voltage that can be applied to the VIN pin is 18V, but it is recommended to keep it below 15V for optimal performance and reliability.
  • The BD7931F-E2 is rated for operation up to 105°C, but it is recommended to derate the output current and input voltage to ensure reliable operation in high-temperature environments.
  • The BD7931F-E2 has built-in overcurrent protection (OCP) and thermal shutdown (TSD) features. However, it is recommended to add external protection components, such as fuses or PTC thermistors, to ensure additional protection against overcurrent and overheating.
