BD800M5WFPJ-C - ROHM Semiconductor

BD800M5WFPJ-C Details

• Manufacturer Part Number:

  BD800M5WFPJ-C

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

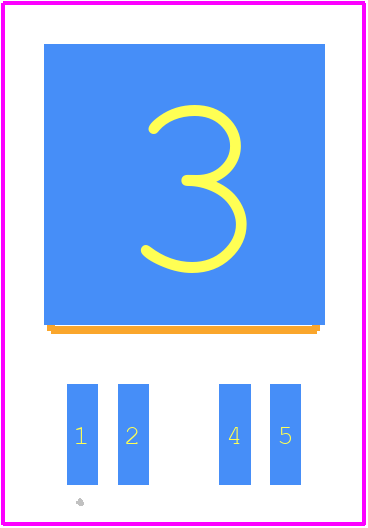

• Package Description:

  TO-252 5 PIN

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2020-03-19

• Manufacturer:

  ROHM Semiconductor

• YTEOL:

  6

• Adjustability:

  ADJUSTABLE

• Dropout Voltage1-Max:

  0.87 V

• Dropout Voltage1-Nom:

  0.5 V

• JESD-30 Code:

  R-PSSO-G5

• Length:

  6.6 mm

• Line Regulation-Max (%/V):

  0.027272

• Load Regulation-Max:

  0.6%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  5

• Operating Temperature TJ-Max:

  150 °C

• Operating Temperature TJ-Min:

  -40 °C

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current1-Max:

  0.4 A

• Output Voltage1-Max:

  16 V

• Output Voltage1-Min:

  1.2 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TO-252

• Package Equivalence Code:

  SMSIP5H,.37,50TB

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Regulator Type:

  ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  2.4 mm

• Surface Mount:

  YES

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.14 mm

• Terminal Position:

  SINGLE

• Width:

  6.1 mm
