BD8963EFJ-E2 - ROHM Semiconductor

Description: Switching Voltage Regulators LONOISE HI EFF SWTCH REG MOSFET

Download BD8963EFJ-E2 Model

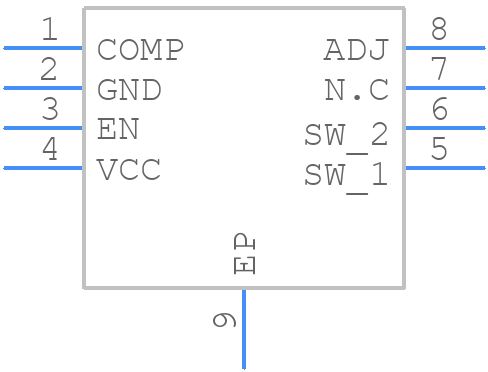

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

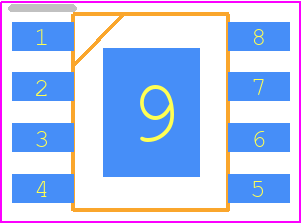

BD8963EFJ-E2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - HTSOP-J8_2024_1
click to zoom
3D Models
BD8963EFJ-E2 - ROHM Semiconductor  - 3D model - Small Outline Packages - HTSOP-J8_2024_1
click to zoom

BD8963EFJ-E2 Details

  • Manufacturer Part Number:

    BD8963EFJ-E2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    HTSOP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7.3

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 1 TO 2.5V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSOP

  • Package Equivalence Code:

    TSOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1200 kHz

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

BD8963EFJ-E2 Frequently Asked Questions (FAQs)

  • ROHM recommends a 2-layer or 4-layer PCB with a thermal relief pattern on the bottom layer to improve heat dissipation. A minimum of 1 oz copper thickness is recommended.
  • To ensure stable operation with a high-ESR output capacitor, add a 10nF to 22nF ceramic capacitor in parallel with the output capacitor to reduce the ESR effect.
  • The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may damage the device.
  • Yes, a ceramic capacitor can be used for the input capacitor (CIN), but ensure it has a low ESR and is rated for the maximum input voltage.
  • The output voltage ripple can be calculated using the formula: ΔVout = (Iout * ESR) / (f * Cout), where Iout is the output current, ESR is the output capacitor's equivalent series resistance, f is the switching frequency, and Cout is the output capacitance.
