OUTPUT VOLTAGE RANGE FROM 0.8 V TO 35 V, SEATED HT-CALCULATED
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
VOLTAGE-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
35 V
Input Voltage-Min:
5 V
Input Voltage-Nom:
13.2 V
JESD-30 Code:
R-PDSO-G8
Length:
5 mm
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
4 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
1.71 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Temperature Grade:
AUTOMOTIVE
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Width:
4.4 mm
BD9060F-CE2 Frequently Asked Questions (FAQs)
A recommended PCB layout for optimal thermal performance would be to have a large copper area on the bottom layer connected to the GND pin, and to use thermal vias to dissipate heat. Additionally, keeping the PCB layers as thin as possible and using a thermal interface material can also help.
To ensure stable output voltage regulation, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, ensuring that the input voltage is within the recommended range, and that the output capacitor is of sufficient value and type, can also help. It's also important to minimize noise and ripple on the input voltage.
The maximum ambient temperature for reliable operation of the BD9060F-CE2 is 85°C. However, it's recommended to derate the device's power dissipation accordingly to ensure reliable operation over the desired temperature range.
While it's technically possible to use a different inductor value or type, it's not recommended as it may affect the device's performance and stability. The recommended inductor value and type are specified in the datasheet to ensure optimal performance and efficiency.
To troubleshoot issues with the device, start by verifying that the PCB layout and component values match the recommended values in the datasheet. Check for any signs of overheating, and ensure that the input voltage is within the recommended range. If the issue persists, try replacing the device or checking for any signs of physical damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BD9060F-CE2 Overview

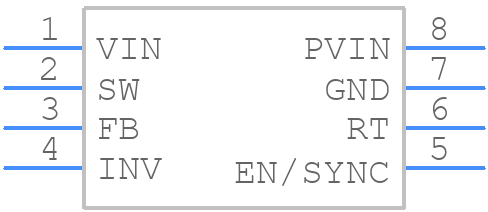

Use the download button to access the BD9060F-CE2 schematic symbol, PCB footprint, and 3D model.
