BD9141MUV - ROHM Semiconductor

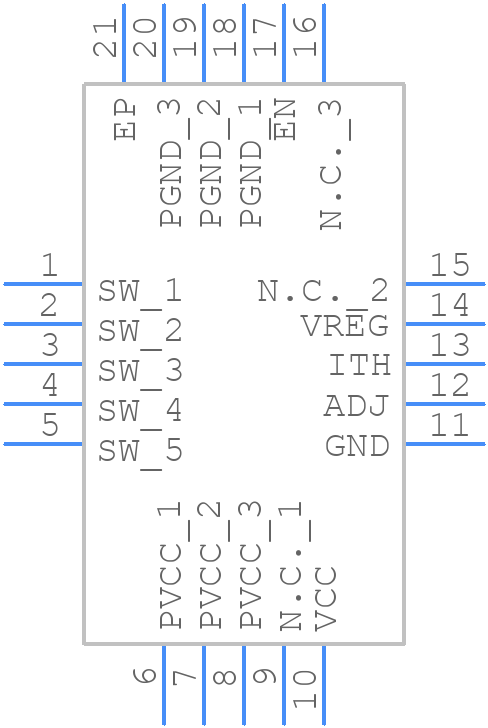

BD9141MUV Details

• Manufacturer Part Number:

  BD9141MUV

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFN

• Package Description:

  4 X 4 MM, ROHS COMPLIANT, VQFN-20

• Pin Count:

  20

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  ROHM Semiconductor

• YTEOL:

  8

• Additional Feature:

  ALSO OPERATES IN ADJUSTABLE MODE FROM 2.5V TO 6V

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  13.2 V

• Input Voltage-Min:

  4.5 V

• Input Voltage-Nom:

  8 V

• JESD-30 Code:

  S-XQCC-N20

• JESD-609 Code:

  e2

• Length:

  4 mm

• Number of Functions:

  1

• Number of Terminals:

  20

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  2 A

• Package Body Material:

  UNSPECIFIED

• Package Code:

  VQCCN

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  600 kHz

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Copper (Sn/Cu)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  4 mm
