BD9227F-E2 - ROHM Semiconductor

Description: 6V To 20V, 1A 1ch PWM Buck Converter with an Integrated FET

Download BD9227F-E2 Model

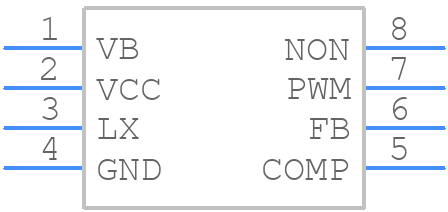

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BD9227F-E2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - SOP8-
click to zoom
3D Models
BD9227F-E2 - ROHM Semiconductor  - 3D model - Small Outline Packages - SOP8-
click to zoom

BD9227F-E2 Details

  • Manufacturer Part Number:

    BD9227F-E2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7

  • Additional Feature:

    OPERATES IN ADJUSTABLE MODE FROM 1.512V TO 20V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    6 V

  • Input Voltage-Nom:

    16 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.71 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4.4 mm

BD9227F-E2 Frequently Asked Questions (FAQs)

  • A recommended PCB layout for optimal thermal performance would be to have a large copper area on the bottom layer connected to the GND pin, and to use thermal vias to dissipate heat. Additionally, keeping the PCB layers as thin as possible and using a thermal interface material can also help.
  • To ensure stable output voltage regulation, it's essential to follow the recommended component values and PCB layout guidelines in the datasheet. Additionally, using a high-quality output capacitor with low ESR and a sufficient capacitance value can help to reduce output voltage ripple and ensure stable regulation.
  • Although the datasheet specifies a maximum input voltage of 18V, it's recommended to derate the input voltage to 15V to ensure reliable operation and to prevent damage to the device.
  • To protect the BD9227F-E2 from overcurrent and overheating, it's recommended to add an external current sense resistor and a thermal monitoring circuit to detect overcurrent and overheating conditions. Additionally, using a fuse or a PTC thermistor can also help to prevent damage to the device.
  • While the BD9227F-E2 is rated for operation up to 105°C, it's recommended to derate the device's performance and to use a heat sink or a thermal interface material to ensure reliable operation in high-temperature environments.
