BD9302FP-E2 - ROHM Semiconductor

Description: IC REG BUCK ADJ 1.8A DL 25HSOP

Download BD9302FP-E2 Model

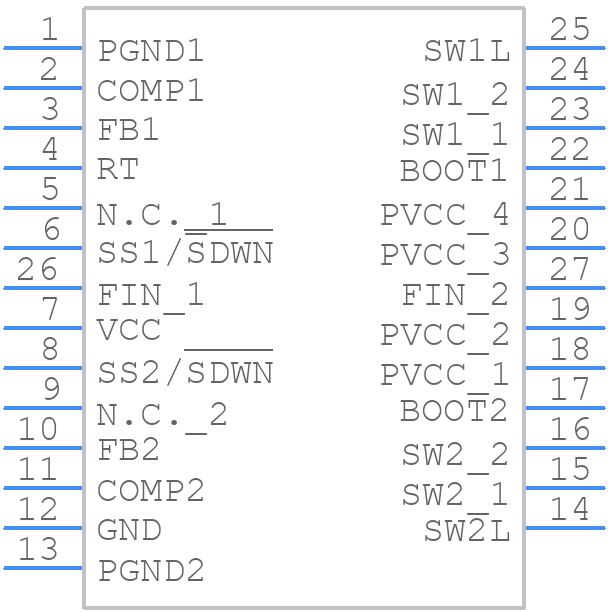

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BD9302FP-E2 - ROHM Semiconductor PCB footprint - Other - Other - BD9302FP-E2-2
click to zoom
3D Models
BD9302FP-E2 - ROHM Semiconductor  - 3D model - Other - BD9302FP-E2-2
click to zoom

BD9302FP-E2 Details

  • Manufacturer Part Number:

    BD9302FP-E2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    25

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Analog IC - Other Type:

    DUAL SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    6 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G25

  • Length:

    13.6 mm

  • Number of Functions:

    1

  • Number of Terminals:

    25

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SOP32,.3,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2500 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Width:

    5.4 mm

BD9302FP-E2 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short and wide traces for the power lines.
  • To ensure stability, use a minimum output capacitance of 10uF, and ensure that the ESR (Equivalent Series Resistance) of the capacitor is less than 1 ohm. Also, add a 10nF capacitor between the FB pin and GND for noise filtering.
  • The maximum input voltage is 18V, but it's recommended to keep it below 15V for reliable operation and to prevent overheating.
  • The output voltage can be calculated using the formula: Vout = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors connected to the FB pin.
  • The thermal resistance of the BD9302FP-E2 package is 55°C/W (junction-to-ambient) and 10°C/W (junction-to-case).
