BD9483F-GE2 - ROHM Semiconductor

Description: White LED Driver for large LCD Panels (DCDC Converter type)

Download BD9483F-GE2 Model

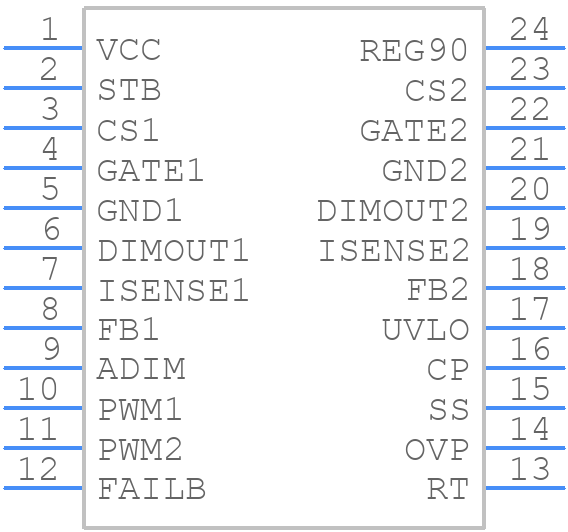

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

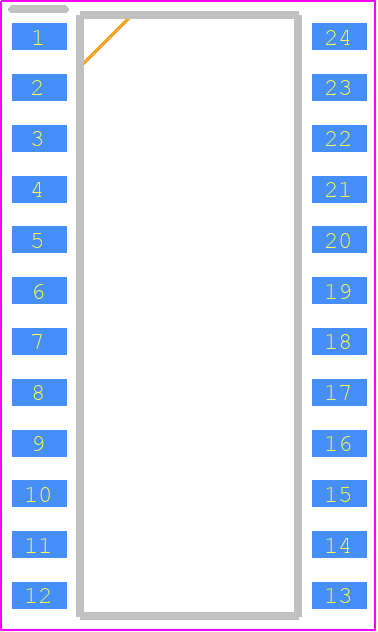

BD9483F-GE2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - SOP24_1
click to zoom
3D Models
BD9483F-GE2 - ROHM Semiconductor  - 3D model - Small Outline Packages - SOP24_1
click to zoom

BD9483F-GE2 Details

  • Manufacturer Part Number:

    BD9483F-GE2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7.89

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    15 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    8

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    2.01 mm

  • Supply Voltage-Max:

    35 V

  • Supply Voltage-Min:

    11 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5.4 mm

  • fmax-Min:

    0.05 MHz

BD9483F-GE2 Frequently Asked Questions (FAQs)

  • A good PCB layout for the BD9483F-GE2 involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a shielded inductor and to keep the switching node (SW pin) away from sensitive analog circuits.
  • To ensure the stability of the output voltage, it's essential to choose the right output capacitor value and type. A minimum capacitance of 10uF is recommended, and the capacitor should have a low ESR (Equivalent Series Resistance) to minimize voltage ripple. Additionally, the output voltage can be stabilized by adding a small ceramic capacitor (e.g., 100nF) in parallel with the output capacitor.
  • The BD9483F-GE2 can operate in an ambient temperature range of -40°C to 105°C. However, the device's performance and reliability may degrade at extreme temperatures. It's recommended to keep the ambient temperature below 85°C for optimal performance and reliability.
  • Yes, the BD9483F-GE2 is suitable for high-reliability applications. ROHM Semiconductor has qualified the device according to the AEC-Q100 standard, which ensures its reliability in harsh automotive environments. However, it's essential to follow proper design and manufacturing guidelines to ensure the device's reliability in the specific application.
  • The power dissipation of the BD9483F-GE2 can be calculated using the following formula: Pd = (Vin * Iin) - (Vout * Iout), where Vin is the input voltage, Iin is the input current, Vout is the output voltage, and Iout is the output current. Additionally, the device's thermal resistance (Rth) should be considered to calculate the junction temperature, which affects the device's reliability.
