A good PCB layout for the BD9488F-GE2 should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper coverage around the device. Avoid routing high-current traces under the device, and keep the thermal pad connected to a solid ground plane.
To ensure stable output voltage regulation, make sure to decouple the input and output pins with suitable capacitors (e.g., 10uF ceramic capacitors). Also, ensure that the input voltage is within the recommended range, and the output current is within the specified maximum rating.
A low-ESR ceramic capacitor (e.g., X5R or X7R) with a value of 10uF to 22uF is recommended for the input pin. This helps to filter out noise and ensure stable operation.
Implement overcurrent protection (OCP) and overtemperature protection (OTP) mechanisms in your design. You can use external components, such as fuses or PTC thermistors, to detect and respond to overcurrent and overheating conditions.
The recommended operating temperature range for the BD9488F-GE2 is -40°C to 125°C. However, the device can operate up to 150°C for short periods during startup or fault conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BD9488F-GE2 Overview

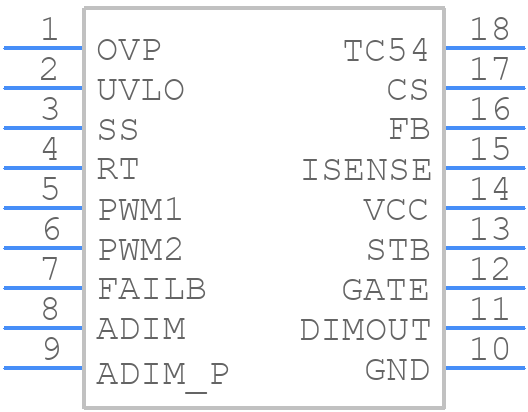

Use the download button to access the BD9488F-GE2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BD948,
or try a keyword search, such as Display Drivers
