BD9702T-V5 - ROHM Semiconductor

Description: Switching Voltage Regulators Conv DC-DC Single Step Down 4V to 35V 5-Pin (5+Tab) TO-220FP

Download BD9702T-V5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

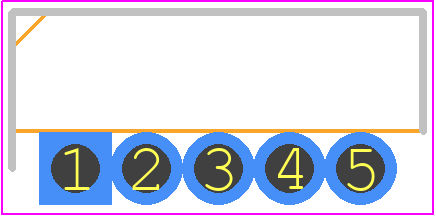

BD9702T-V5 - ROHM Semiconductor PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - BD9702T-V5
click to zoom
3D Models
BD9702T-V5 - ROHM Semiconductor  - 3D model - Transistor Outline, Vertical - BD9702T-V5
click to zoom

BD9702T-V5 Details

  • Manufacturer Part Number:

    BD9702T-V5

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SFM

  • Pin Count:

    3

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    35 V

  • Input Voltage-Min:

    8 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XZFM-T5

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP5,.15,.17,67TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    132 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.7 mm

  • Terminal Position:

    ZIG-ZAG

BD9702T-V5 Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane or a dedicated heat sink.
  • To ensure stable output voltage regulation, it's essential to follow the recommended input and output capacitor values, as well as the suggested PCB layout. Additionally, the input voltage should be within the recommended range, and the output load should not exceed the maximum rated current.
  • The maximum allowed input voltage ripple for the BD9702T-V5 is 1Vp-p. Exceeding this value may affect the regulator's performance and stability.
  • The BD9702T-V5 is rated for operation up to 105°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended operating conditions and consider derating the device's performance at elevated temperatures.
  • The BD9702T-V5 has built-in overcurrent protection (OCP) and short-circuit protection (SCP). However, it's still recommended to add external protection components, such as fuses or PTC resistors, to prevent damage from excessive current or voltage surges.
