BD9E104FJ-E2 - ROHM Semiconductor

Description: ROHM, BD9E104FJ-E2 Step-Down Switching Regulator, 1-Channel 1A Adjustable 8-Pin, SOP

Download BD9E104FJ-E2 Model

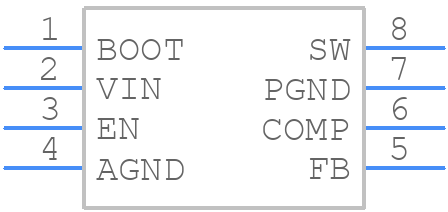

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BD9E104FJ-E2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - SOP-J8-
click to zoom
3D Models
BD9E104FJ-E2 - ROHM Semiconductor  - 3D model - Small Outline Packages - SOP-J8-
click to zoom

BD9E104FJ-E2 Details

  • Manufacturer Part Number:

    BD9E104FJ-E2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2017-12-27

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    26 V

  • Input Voltage-Min:

    7 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    13 V

  • Output Voltage-Min:

    1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.65 mm

  • Supply Current-Max (Isup):

    0.5 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    656 kHz

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

BD9E104FJ-E2 Frequently Asked Questions (FAQs)

  • A recommended PCB layout for optimal thermal performance would be to have a large copper area on the bottom layer connected to the thermal pad, and to use thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended.
  • To ensure the stability of the output voltage, it is recommended to use a capacitor with a low ESR (Equivalent Series Resistance) and a high ripple current rating. A 10uF to 22uF capacitor with an ESR of less than 1 ohm is recommended.
  • Although the datasheet specifies a maximum input voltage of 18V, it is recommended to limit the input voltage to 15V to ensure reliable operation and to prevent damage to the device.
  • To protect the device from overcurrent, it is recommended to add an external current limiting resistor or a fuse in series with the input voltage. The current limit should be set to 1.5A to 2A to prevent damage to the device.
  • A 1uF to 10uF ceramic capacitor with an X5R or X7R dielectric is recommended for the input capacitor. This will help to filter out noise and ensure stable operation.
