BD9P135EFV-CE2 - ROHM Semiconductor

Description: 1 A Single 2.2 MHz Buck DC/DC Converter For Automotive, HTSSOP-B20

Download BD9P135EFV-CE2 Model

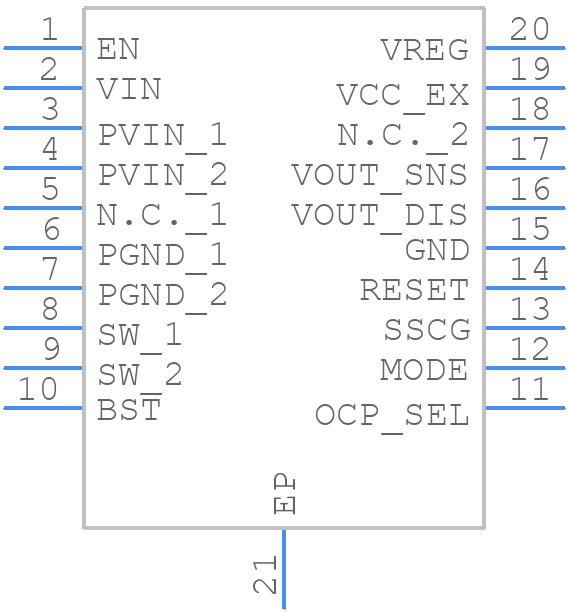

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

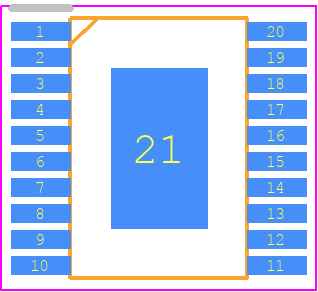

BD9P135EFV-CE2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - HTSSOP-B20
click to zoom
3D Models
BD9P135EFV-CE2 - ROHM Semiconductor  - 3D model - Small Outline Packages - HTSSOP-B20
click to zoom

BD9P135EFV-CE2 Details

  • Manufacturer Part Number:

    BD9P135EFV-CE2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    6.5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    3.35 V

  • Output Voltage-Min:

    3.24 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSSOP

  • Package Equivalence Code:

    TSSOP20,.25,25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2400 kHz

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

BD9P135EFV-CE2 Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad size of at least 2.5mm x 2.5mm, with multiple vias to the ground plane to ensure efficient heat dissipation. A minimum of 3mm clearance around the device is also recommended to prevent thermal interference.
  • To ensure stable operation with a high-ESR output capacitor, ROHM recommends using a capacitor with an ESR of less than 100mΩ. Additionally, a 1μF ceramic capacitor in parallel with the output capacitor can help to improve stability.
  • The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may cause damage to the device.
  • The BD9P135EFV-CE2 is rated for operation up to 105°C. However, derating is required for temperatures above 85°C. Consult the datasheet for specific derating guidelines.
  • The output voltage ripple can be calculated using the formula: ΔVout = (Iout x ESL) / (Cout x fsw), where ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency.
