BD9P235EFV-CE2 - ROHM Semiconductor

Description: , 2 A Single 2.2 MHz Buck DC/DC Converter For Automotive, HTSSOP-B20

Download BD9P235EFV-CE2 Model

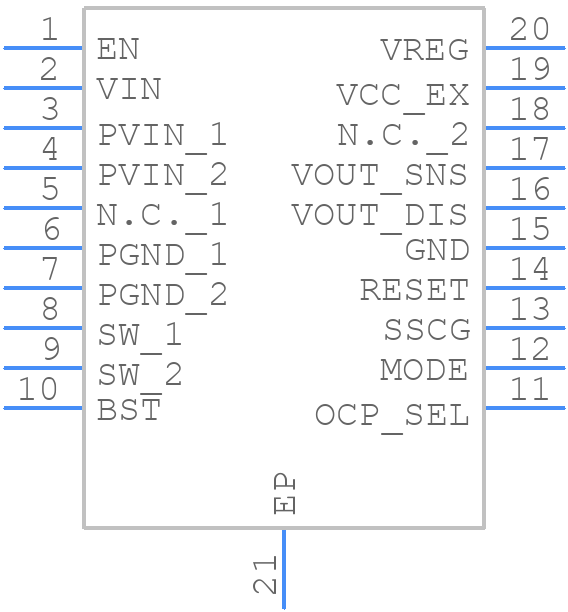

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

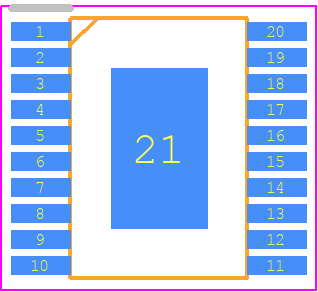

BD9P235EFV-CE2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - BD63565EFV-E2
click to zoom
3D Models
BD9P235EFV-CE2 - ROHM Semiconductor  - 3D model - Small Outline Packages - BD63565EFV-E2
click to zoom

BD9P235EFV-CE2 Details

  • Manufacturer Part Number:

    BD9P235EFV-CE2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HTSSOP-B20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    6.5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    3.35775 V

  • Output Voltage-Min:

    3.24225 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC

  • Package Code:

    TSOP2

  • Package Equivalence Code:

    TSOP20,.25,25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2.4 kHz

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    6.4 mm

BD9P235EFV-CE2 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the BD9P235EFV-CE2 is -40°C to 125°C.
  • To ensure the stability of the output voltage, it is recommended to use a capacitor with a value of 1uF or more between the VOUT and GND pins, and to keep the input voltage within the specified range.
  • The maximum input voltage that the BD9P235EFV-CE2 can handle is 18V. Exceeding this voltage may cause damage to the device.
  • The output voltage of the BD9P235EFV-CE2 can be calculated using the formula: VOUT = 1.235V x (1 + R1/R2), where R1 and R2 are the resistors connected to the FB pin.
  • The quiescent current of the BD9P235EFV-CE2 is typically around 1mA, but it can vary depending on the input voltage and output load.
