Berex Corp recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible to minimize parasitic inductance and capacitance. Additionally, it's recommended to use a common mode choke and a ferrite bead to filter out high-frequency noise.
To ensure proper biasing, it's essential to follow the recommended biasing circuit in the datasheet. The BDA4601 requires a specific voltage and current biasing to operate within its linear region. A voltage regulator and a current source or sink are recommended to maintain a stable bias voltage and current.
The BDA4601 is rated for operation from -40°C to +85°C. However, it's recommended to derate the device's performance at higher temperatures to ensure reliability and prevent thermal runaway.
While the BDA4601 is designed for linear applications, it can be used in switching power supplies with proper design considerations. However, it's essential to ensure the device is properly biased and that the switching frequency is outside the device's bandwidth to prevent oscillation and instability.
To troubleshoot common issues, start by verifying the PCB layout and ensuring that the device is properly biased. Check for any signs of overheating, and verify that the input and output impedances are matched. Use a spectrum analyzer to identify any unwanted oscillations or frequency components. If issues persist, consult the datasheet and application notes or contact Berex Corp's technical support for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BDA4601 Overview

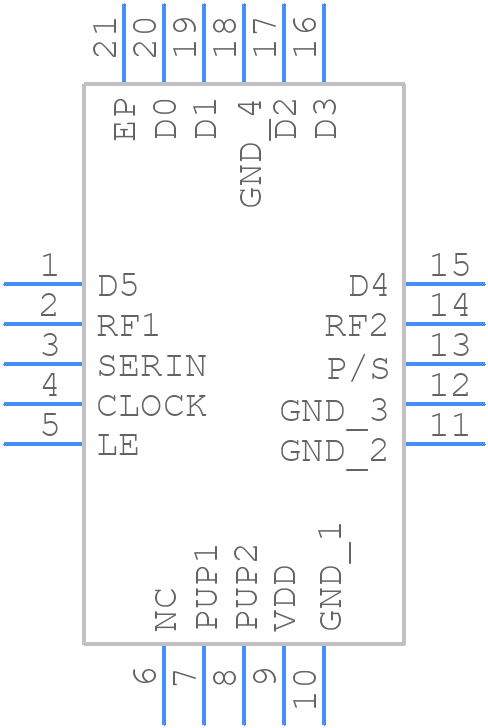

Use the download button to access the BDA4601 schematic symbol, PCB footprint, and 3D model.
