BDB12 - LITTELFUSE

Description: DIP Switches / SIP Switches DIP 12P Standard Vertical Profile Red

Download BDB12 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this BDB12 model

Email notifications will be applied after download.

Send part feedback

Symbol

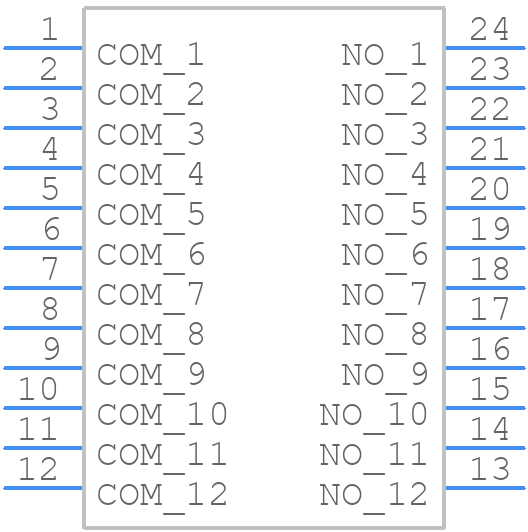

BDB12 - LITTELFUSE - PCB symbol

PCB Footprints

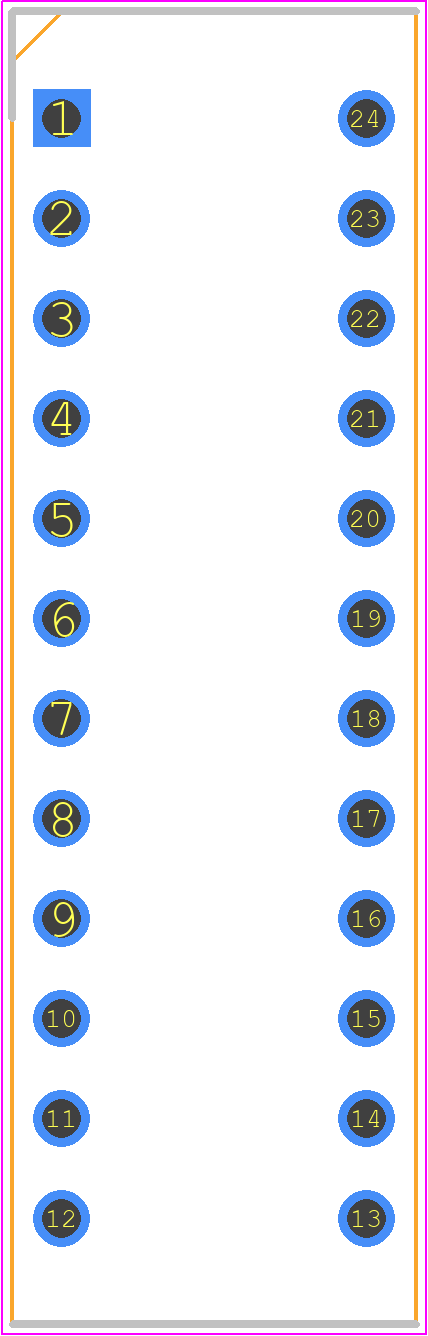

BDB12 - LITTELFUSE PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - BDB12

Datasheet Download Datasheet
Stock & Prices Price & Stock for BDB12
Part Number BDB12
Manufacturer LITTELFUSE
Pin Count 24
Part Category Switch
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - BDB12
Released Date Jul 18, 2021
Last Modified Date Apr 10, 2026 9:41 PM UTC
Pinout / Pin List Click Here (Member Only)
