BDCA-15-25+ - Mini-Circuits

Description: 15 dB SMT Bi-Directional Coupler, 800 - 2500 MHz, 50Ω

Download BDCA-15-25+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

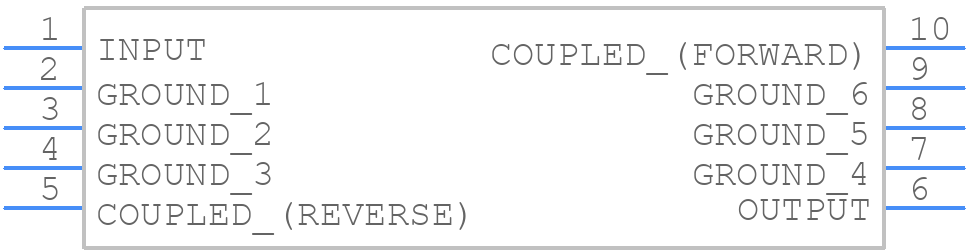

BDCA-15-25+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
BDCA-15-25+ - Mini-Circuits PCB footprint - Other - Other - DZ944
click to zoom
3D Models
BDCA-15-25+ - Mini-Circuits - 3D model - Other - DZ944
click to zoom

BDCA-15-25+ Details

  • Manufacturer Part Number:

    BDCA-15-25+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    43.62 dBm

  • Insertion Loss-Max:

    1 dB

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    2500 MHz

  • Operating Frequency-Min:

    800 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • RF/Microwave Device Type:

    BI-DIRECTIONAL COUPLER

  • Terminal Finish:

    Tin (Sn)

  • VSWR-Max:

    1.35

BDCA-15-25+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The BDCA-15-25+ has a maximum junction temperature of 150°C. To ensure reliable operation, it's crucial to provide adequate heat sinking, such as using a thermal pad or heat sink, and to keep the device within the recommended operating temperature range.
  • While the datasheet doesn't specify a maximum input power, it's generally recommended to limit the input power to 1W or less to avoid damage to the device. Exceeding this power may cause permanent damage or affect the device's performance.
  • While the BDCA-15-25+ is designed for 50 ohm systems, it can be used in non-50 ohm systems with some caution. However, the device's performance may be affected, and impedance matching may be required to achieve optimal results.
  • The BDCA-15-25+ is designed to handle overdrive conditions, but excessive overdrive can lead to compression, distortion, or even damage to the device. It's essential to ensure that the input signal is within the recommended range to maintain optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BDCA-15-25+ Overview

Use the download button to access the BDCA-15-25+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BDCA-, or try a keyword search, such as RF/Microwave Couplers
