BDCN-17-25+ - Mini-Circuits

Description: RF Directional Coupler CDMA, PCS, DCS 824MHz ~ 2.525GHz 18.3 ± 0.6dB 16W 6-SMD, No Lead

Download BDCN-17-25+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

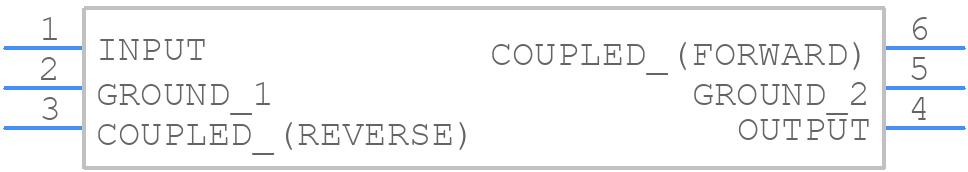

BDCN-17-25+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
BDCN-17-25+ - Mini-Circuits PCB footprint - Other - Other - BDCN-17-25+-2
click to zoom
3D Models
BDCN-17-25+ - Mini-Circuits - 3D model - Other - BDCN-17-25+-2
click to zoom

BDCN-17-25+ Details

  • Manufacturer Part Number:

    BDCN-17-25+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.78

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    42.04 dBm

  • Insertion Loss-Max:

    0.9 dB

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    2525 MHz

  • Operating Frequency-Min:

    824 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • RF/Microwave Device Type:

    BI-DIRECTIONAL COUPLER

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • VSWR-Max:

    1.2
