BDCN-7-25+ - Mini-Circuits

Description: Signal Conditioning 8.2 dB SMT Bi-Directional Coupler, 824 - 2525 MHz, 50

Download BDCN-7-25+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

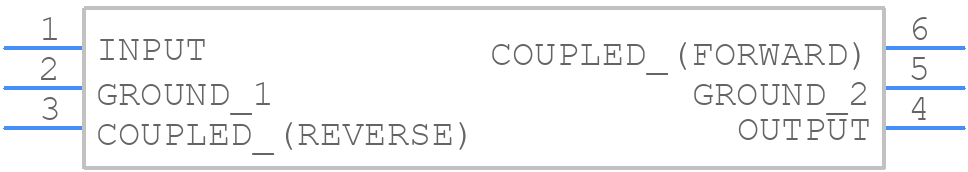

BDCN-7-25+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
BDCN-7-25+ - Mini-Circuits PCB footprint - Other - Other - BDCN-7-25+-2
click to zoom
3D Models
BDCN-7-25+ - Mini-Circuits - 3D model - Other - BDCN-7-25+-2
click to zoom

BDCN-7-25+ Details

  • Manufacturer Part Number:

    BDCN-7-25+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    41.76 dBm

  • Insertion Loss-Max:

    2 dB

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    2525 MHz

  • Operating Frequency-Min:

    824 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • RF/Microwave Device Type:

    BI-DIRECTIONAL COUPLER

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • VSWR-Max:

    1.15

BDCN-7-25+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout and footprint for the BDCN-7-25+ can be found in the Mini-Circuits application note AN-60-001, which provides a detailed guide for PCB designers.
  • To ensure proper biasing, follow the recommended biasing circuit and voltage levels outlined in the datasheet. Additionally, ensure that the input and output impedances are matched to the device's characteristic impedance (50 ohms) to minimize reflections and maximize performance.
  • The maximum power handling of the BDCN-7-25+ is 1 watt. Exceeding this power level may result in device damage or degradation. It's essential to ensure that the input power is within the recommended range to maintain device reliability and performance.
  • Yes, the BDCN-7-25+ can be used in a push-pull configuration. However, it's essential to ensure that the devices are properly matched and biased to maintain optimal performance and prevent oscillations.
  • The operating temperature range of the BDCN-7-25+ is -40°C to +85°C. Operating the device outside this range may affect its performance and reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BDCN-7-25+ Overview

Use the download button to access the BDCN-7-25+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BDCN-, or try a keyword search, such as RF/Microwave Couplers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
