Part Image

BFC237065472 - Vishay

Description: Film Capacitors .0047uF 10% 400volts

Download BFC237065472 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
BFC237065472 - Vishay - PCB symbol
click to zoom
PCB Footprints

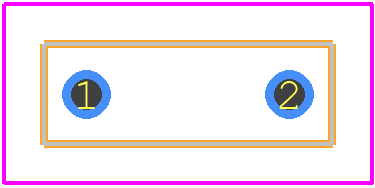

BFC237065472 - Vishay PCB footprint - Other - Other - BFC237065472-4
click to zoom
3D Models
BFC237065472 - Vishay - 3D model - Other - BFC237065472-4
click to zoom

BFC237065472 Details

  • Manufacturer Part Number:

    BFC237065472

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6.82

  • Capacitance:

    0.0047 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYESTER

  • Height:

    6.5 mm

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    AMMO PACK

  • Positive Tolerance:

    10%

  • Rated (AC) Voltage (URac):

    220 V

  • Rated (DC) Voltage (URdc):

    400 V

  • Reference Standard:

    AEC-Q200, IEC60384-2

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Pitch:

    5.08 mm

  • Terminal Shape:

    WIRE

  • Width:

    2.5 mm

BFC237065472 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for BFC237065472 is between 260°C to 280°C for a maximum of 10 seconds.
  • Yes, the BFC237065472 is a thick-film resistor designed for high-frequency applications up to 50 GHz, making it suitable for RF and microwave circuits.
  • The power rating of the BFC237065472 decreases with increasing temperature. At 125°C, the power rating is 50% of the maximum power rating, and at 150°C, it is 25% of the maximum power rating.
  • The BFC237065472 has a moisture sensitivity level (MSL) of 1, which means it can withstand normal humidity levels. However, it's recommended to follow standard humidity protection measures to ensure reliability.
  • Yes, the BFC237065472 is compatible with lead-free soldering processes and meets the requirements of the RoHS (Restriction of Hazardous Substances) directive.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BFC237065472 Overview

Use the download button to access the BFC237065472 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BFC23, or try a keyword search, such as Film Capacitors
