BFCO-252+ - Mini-Circuits

Description: Signal Conditioning BANDPASS FLTR / SURF MT / RoHS

Download BFCO-252+ Model

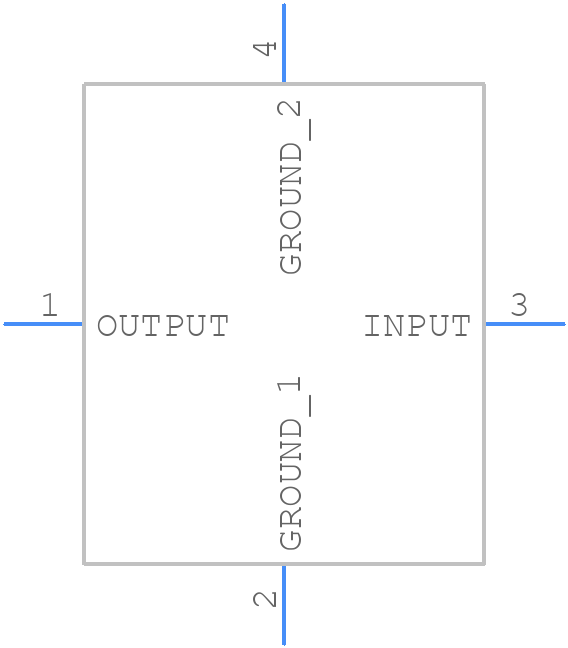

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BFCO-252+ - Mini-Circuits PCB footprint - Other - Other - NK0402C-1_2024-2
click to zoom
3D Models
BFCO-252+ - Mini-Circuits  - 3D model - Other - NK0402C-1_2024-2
click to zoom

BFCO-252+ Details

  • Manufacturer Part Number:

    BFCO-252+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.49

  • Average Input Power:

    2 W

  • Center or Cutoff Frequency (fo/fc):

    2450 MHz

  • Filter Type:

    CERAMIC BPF

  • Height:

    0.38 mm

  • Input/Output Impedance:

    50 OHM

  • Length:

    0.99 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Width:

    0.51 mm

BFCO-252+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes and evaluation board documentation. It's essential to follow these guidelines to ensure optimal performance, minimize parasitic effects, and prevent thermal issues.
  • The BFCO-252+ can be biased in various configurations. Consult the datasheet and application notes to determine the suitable biasing configuration for your specific application. You may also need to consider factors like operating frequency, gain, and power consumption.
  • While the datasheet provides some information on power handling, it's essential to consult with Mini-Circuits' technical support or application engineers to determine the maximum power handling capability for your specific application, as it may depend on various factors like frequency, impedance, and environmental conditions.
  • Proper thermal management is crucial to prevent overheating and ensure reliable operation. Ensure good heat dissipation by using a heat sink, thermal interface material, and a well-designed PCB layout. Consult the datasheet and application notes for thermal management guidelines.
  • Mini-Circuits provides test and measurement procedures in their application notes and datasheet. It's essential to follow these guidelines to ensure accurate characterization of the device. You may also need to consult with test and measurement equipment manufacturers for specific setup and calibration procedures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BFCO-252+ Overview

Use the download button to access the BFCO-252+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BFCO-, or try a keyword search, such as Ceramic Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
