BFCO-552+ - Mini-Circuits

Description: 5.5GHz Center Band Pass Ceramic Filter 1.2 GHz 50Ohm 0402 (1005 Metric)

Download BFCO-552+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

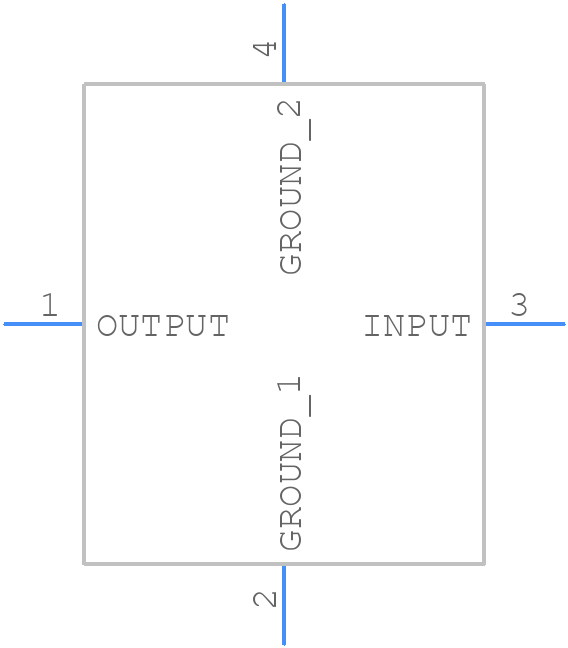

BFCO-552+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
BFCO-552+ - Mini-Circuits PCB footprint - Other - Other - NK0402C-1_2025
click to zoom
3D Models
BFCO-552+ - Mini-Circuits - 3D model - Other - NK0402C-1_2025
click to zoom

BFCO-552+ Details

  • Manufacturer Part Number:

    BFCO-552+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.49

  • Average Input Power:

    3 W

  • Center or Cutoff Frequency (fo/fc):

    5500 MHz

  • Filter Type:

    CERAMIC BPF

  • Height:

    0.38 mm

  • Input/Output Impedance:

    50 OHM

  • Insertion Loss-Max:

    2.2 dB

  • Length:

    0.99 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Width:

    0.51 mm
