BFCQ-1932+ - Mini-Circuits

Description: Signal Conditioning LTCC Band Pass Filter, 17700 - 21000 MHz, 50 Ohm

Download BFCQ-1932+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

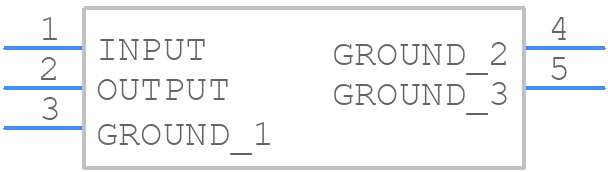

BFCQ-1932+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
BFCQ-1932+ - Mini-Circuits PCB footprint - Other - Other - NL1008C-7_2022
click to zoom
3D Models
BFCQ-1932+ - Mini-Circuits - 3D model - Other - NL1008C-7_2022
click to zoom

BFCQ-1932+ Details

  • Manufacturer Part Number:

    BFCQ-1932+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.19

  • Average Input Power:

    1 W

  • Center or Cutoff Frequency (fo/fc):

    19300 MHz

  • Filter Type:

    CERAMIC BPF

  • Height:

    0.71 mm

  • Input/Output Impedance:

    50 OHM

  • Insertion Loss-Max:

    3 dB

  • Length:

    2.49 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Width:

    2.01 mm

BFCQ-1932+ Frequently Asked Questions (FAQs)

  • The maximum power handling of the BFCQ-1932+ is 2 watts. Exceeding this power rating may cause damage to the device.
  • No, the BFCQ-1932+ is not designed for outdoor use. It is intended for indoor use only and may not withstand environmental stresses such as moisture, temperature extremes, or physical shock.
  • No, the BFCQ-1932+ is not designed to withstand high-vibration environments. It is intended for use in benign environments with minimal vibration.
  • Yes, the BFCQ-1932+ is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
  • The operating temperature range of the BFCQ-1932+ is -40°C to +85°C. Operating outside this range may affect the device's performance or reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BFCQ-1932+ Overview

Use the download button to access the BFCQ-1932+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BFCQ-, or try a keyword search, such as Ceramic Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
