BFTC-415+ - Mini-Circuits

Description: Ceramic Bandpass Filter 50Ω 330 to 500 MHz

Download BFTC-415+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

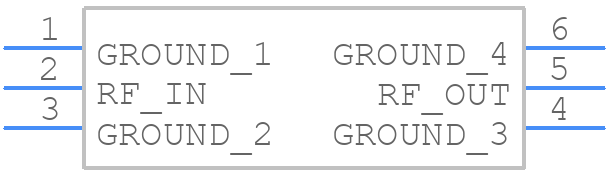

Symbol
BFTC-415+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
BFTC-415+ - Mini-Circuits PCB footprint - Other - Other - CASE STYLE: FR933-1
click to zoom
3D Models
BFTC-415+ - Mini-Circuits - 3D model - Other - CASE STYLE: FR933-1
click to zoom

BFTC-415+ Details

  • Manufacturer Part Number:

    BFTC-415+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    5

  • Average Input Power:

    4 W

  • Center or Cutoff Frequency (fo/fc):

    415 MHz

  • Filter Type:

    CERAMIC BPF

  • Height:

    1.5 mm

  • Input/Output Impedance:

    50 OHM

  • Insertion Loss-Max:

    5.5 dB

  • Length:

    3.81 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • VSWR:

    1.5

  • Width:

    3.81 mm

BFTC-415+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • Impedance matching can be achieved using a combination of series and shunt resistors, capacitors, and inductors. Mini-Circuits provides a impedance matching calculator tool on their website, which can help you determine the required components and their values.
  • The maximum power handling capability of the BFTC-415+ is not explicitly stated in the datasheet. However, according to Mini-Circuits' application engineers, the device can handle up to 1W of continuous power without degradation. Higher power levels may require additional heat sinking or derating.
  • Yes, the BFTC-415+ can be used in a push-pull configuration to achieve higher output power and improved linearity. However, this requires careful design and layout consideration to ensure proper phasing and impedance matching.
  • The typical noise figure of the BFTC-415+ is around 3.5 dB, but this can vary depending on the specific application, operating frequency, and impedance matching. Mini-Circuits provides a noise figure calculator tool on their website to help estimate the noise figure in your specific application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BFTC-415+ Overview

Use the download button to access the BFTC-415+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BFTC-, or try a keyword search, such as Ceramic Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
