BFTC-500+ - Mini-Circuits

Description: Ceramic Bandpass Filter, 400-600MHz

Download BFTC-500+ Model
Schematic
symbols

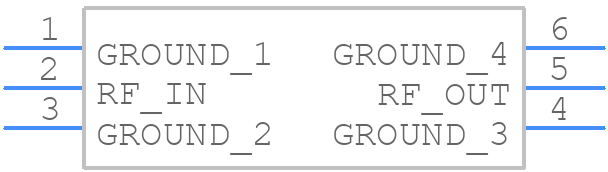

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BFTC-500+ - Mini-Circuits PCB footprint - Other - Other - BFTC-500+-2
click to zoom
3D Models
BFTC-500+ - Mini-Circuits  - 3D model - Other - BFTC-500+-2
click to zoom

BFTC-500+ Details

  • Manufacturer Part Number:

    BFTC-500+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    5

  • Average Input Power:

    4 W

  • Center or Cutoff Frequency (fo/fc):

    500 MHz

  • Filter Type:

    CERAMIC BPF

  • Height:

    1.5 mm

  • Input/Output Impedance:

    50 OHM

  • Insertion Loss-Max:

    5.5 dB

  • Length:

    3.81 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • VSWR:

    1.5

  • Width:

    3.81 mm
